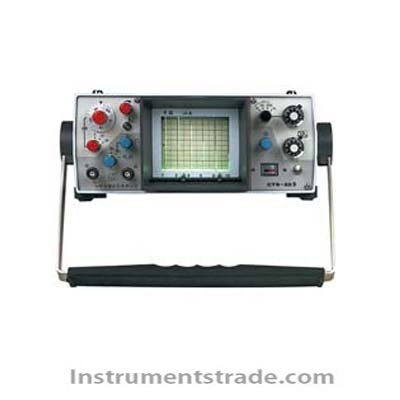

CTS-22 type ultrasonic ultrasonic flaw detector Introduction
The CTS-22 Ultrasonic Flaw Detector is a portable A-type pulse-reflective ultrasonic flaw detector that can be operated with AC or battery power. The instrument is suitable for non-destructive testing of metal and some non-metallic materials. It is especially suitable for field or high-altitude flaw detection operations with high fluidity. It can be used as a standardized instrument for non-destructive testing personnel qualification assessment. Features
High brightness, inner scale rectangular oscilloscope tube.
Wide operating frequency, high sensitivity, good stability and clear waveform.
Small size, light weight, low power consumption and easy operation. Technical parameters
Operating frequency range: 0.5 ~ 10MHz
Attenuator: 80dB, every 2dB ± 0.1dB
Vertical linearity error: ≤5%
Dynamic range: ≥30dB
Scanning range (steel longitudinal wave): 10～5000mm
Horizontal linearity error: ≤1%
Minimum detection distance: ≤3mm (with 5N14 narrow pulse probe)
Far field resolution: ≥30dB (with 2.5P20-D probe)
Pulse shift range (steel longitudinal wave): 0 to 400 mm (scanning range 5, 10, 50 mm)
Sensitivity margin: ≥46dB (2.5P20-D straight probe found 200mm-ф2 flat bottom hole)
Weight: Host 4.5Kg with battery 6.3Kg
Volume (length × width × height): 300mm × 254mm × 100mm
