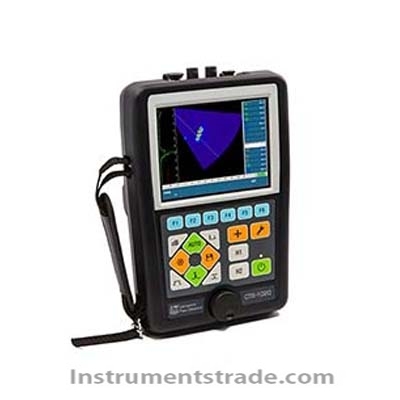

CTS-1020 Digital Ultrasonic Flaw Detector Introduction
CTS-1020 digital ultrasonic flaw detector integrates domestic advanced bipolar square wave, square wave excitation and sharp wave excitation technology. It has stable performance, light weight and portability, convenient operation and high cost performance. The instrument complies with the new tolerance specification TSG R0004-2009 and is compatible with the European Union EN12668-1:2010 standard design requirements. The display uses an industry-leading industrial-grade TFT display (640x480) that is fully qualified for outdoor and direct sunlight. It is equipped with a high-performance lithium battery that can work continuously for 6-8 hours. It weighs only 1.3kg and is suitable for use in mobile or high-altitude non-destructive testing operations in petrochemical, pressure vessel, electric power, railway transportation, military and other industries. Features
The advanced circuit design ensures fast and accurate display and analysis of the defect echo signals, and can respond to changes and details of various weak signals in a timely manner. The real-time and real performance of the echo signals are effectively guaranteed.
Advanced square wave excitation, bipolar square wave excitation technology for excellent penetration and signal-to-noise ratio for detecting highly attenuating materials or thick workpieces; sharp wave excitation techniques and adjustable pulse width, pulse voltage, and emission damping Wave technology has high resolution in detecting both thin and composite materials.
FIR digital filtering technology has better signal-to-noise ratio; probe spectrum analysis can better analyze probe performance information.
Compatible with European standard EN12668-1:2010 design; can be continuously recorded and stored for a long time, meeting the requirements of the new tolerance TSG R0004-2009.
Automatic calibration of material sound velocity, probe delay, probe K value; convenient DAC, AVG curve production and application.
USB HOST interface, external U disk for data transfer; external WIFI module for communication with other wireless devices.
HDMI video output for presentation and presentation needs.
Built-in Beidou, GPS, LBS positioning module, the positioning of the work position is faster and more accurate.
The external phased array module can be plugged in, which makes the conventional instrument have the same phase control detection performance as the phased array instrument.
Customized: Customizable input/output port modules (synchronous trigger output, alarm), customizable capacitive touch screen, customizable menu shortcuts.
Ergonomically optimized design and appearance, with multi-angle brackets and handles, weighing about 1.3kg, including battery and charger, easy to operate and carry. Technical parameters
Attenuator error: every 12dB ± 1dB
Equivalent input noise: ≤80×10-9V/
Pulse type: sharp wave, negative square wave, bipolar square wave; emission voltage 50~250V adjustable, stepping 50V
Working methods: single, double
Damping: 400,80
Operating frequency: 0.6~20MHz
Gain: 0.0~110.0dB, step 0.1, 1.0, 2.0, 6.0dB
Sound speed range: 1000～10000m/s Continuously adjustable Built-in sound velocity values of 30 commonly used materials
Detection method: positive, negative, full wave, radio frequency (RF)
Gate and alarm: Two-way gate, optional: incoming wave alarm, loss wave alarm, DAC curve alarm, alarm signal is sound and light alarm; measurement mode: peak, leading edge
Display: 5.7'TFT color LCD display with resolution of 640×480
Pulse shift: -7.5~3000us
Probe zero value: 0 ~ 999.9us
Pulse repetition frequency: 25~800Hz Automatic adjustment mode
Vertical linearity error: ≤3%
Horizontal linearity error: ≤0.2%
Sensitivity margin: ≥60dB (200Φ2 flat bottom hole, 2.5P20, narrow band)
Resolution: ≥36dB(5P14), ≥26dB(2.5P20)
Dynamic range: ≥32dB
Suppression: (0~90)% does not affect linearity and gain
Electrical noise level: ≤10% (steel longitudinal wave, 250mm)
Interface: Q9 interface; USB HOST; HDMI; phased array module dedicated interface; encoder interface
Power supply: Large capacity lithium battery, no memory effect, can work continuously for 6-8 hours; built-in charger; AC: 220V
Ultrasound standard: Compatible with EN12668-1 standard; in line with JB/T 10061-1999 standard
Weight: about 1.3kg (with battery, built-in charger)
Volume (height × width × thickness): 246mm × 166mm × 50mm
