CTS-1010 Digital Ultrasonic Flaw Detector

Product ID:WWcsts042

Price: Please inquire PDF Format
Supply Ability:60 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberCTS-1010
    Brand NameSHANTOUCHAOSHENG
    Payment TermsT/T, paypal

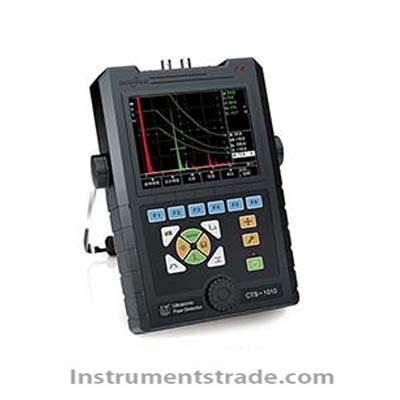

    CTS-1010 Digital Ultrasonic Flaw Detector
    Introduction
    Model CTS-1010 digital ultrasonic flaw detector is developed with the leading technique in domestic market: square wave drive. Stable in performance, portable in carriage, easy in operation, it's a device of high price-to-cost. It is in accordance with new vessel standard TSG R0004-2009 and with European Standard EN12668-1:2010.
    The screen equipped is assumed by 1/2-T-R high resolution TFT screen (640×480), maintaining good working condition outdoors or in intense sunlight. Power is supplied by battery of 6-8 hours life in uninterrupted service.
    It only weighs 1.5kg. It is applicable in mobile or aerial working field for petrifaction, pressure vessel, electricity power and railway transportation.

    Feature
    Sophisticated circuitry with 640MHz sampling frequency enables the system to quickly reflect the signals of the flaws and interpret them accurately to detail no matter how weak and small they are, which ensures real-timeness and truthfulness of the echo signals.
    Advanced square wave drive renders the device extraordinarily penetratable with high signal-to-noise ratio when applied on high attenuating materials or thick works. Adjustable drive pulse width, drive voltage, and damping resistance are contributors to high resolution of the device when used on thin works or composites.
    PIR digital filtering technique for enhancement of signal-to-noise ratio. Probe frequency spectrum scoping gives you the overview of the engaged probe.
    Quality 5.7" trans-reflecting TFT screen (640×480),suitable for working outdoors or sunlighted.
    In accordance with EN12688-1:2000, long and continuous record and storage, up for TSG R0004-2009 standards.
    Auto velocity adjustment to the materials being worked on, and adaptation of the parameters like time delay, K value to different probes; DAC and AVG figures could be easily organized and drawn on.
    SD card port for mass storage; USB port for extended volume from U disk, and for extended control from keyboard or mouse, realizing communication, data transference and paperborne output with PC.
    Ergonomics-optimized structure and appearance with multi-angledly adjustable handle.Weighing 1.5kg, including built-in battery and charger for easy operation and carriage.

    Technical parameter
    Attenuator Every 12dB ± 1dB
    Equivalent Input Noise <80×10-9 V/√HZ
    Transmission Pulse negative square wave; voltage adjustable from 25 to 250V in continuity, with step of 25V; width adjustable from 30 to 1000ns in continuity, with step of 5ns. On shift 400Ω/200V, both edges shorter than 10ns, and the pulse will be optimized into the drive.
    Test Modes Single/Dual
    Damping 400、80Ω
    Working Frequency Wide-band and narrow-band in shift. Wide:0.5-15MHz; Narrow:1.5~3MHz
    Gain 0.0~110.0dB, steps: 0.1/1.0/2.0/6.0dB; automatic speed-up step increment on Shift 0.1 Db
    Velocity Option 1000~1500m/s, adjustable in continuity; 30 pre-set nominated velocities for common materials
    Coverage 0.0~10000mm (Steel Longitudinal wave), adjustable in continuity, min step 0.1mm
    Rectification positive, negative, full-play, RF
    Threshold and Alarm Two thresholds/gates with optional hardware drive real-time alarm conditions
    progressive wave, regressive wave and DAC figure; acoustic or optical alarm signaling
    Measure mode: peak, front edge
    Display 5.7"TFT color LCD, resolution 640×480
    Pulse shift -7.5~3000μs
    Probe Zeroing 0~999.9μs
    Pulse Repetitive Frequency 25~800Hz, automatic adjustment
    Vertical Linearity Error ≤3%
    Horizontal Linearity Error ≤0.4%
    Surplus Sensitivity ≥60dB (200Φ2 flat bottom hole
    Resolution ≥36dB(Probe Model: 5MHz 14mm Dia)
    Dynamic Range ≥32dB
    Reject (0~90)%; no detriment to the linearity and gain
    Noise level <10% (steel longitudinal wave,250mm)
    Port transmission connector: Q9 (BNC)
    USB HOST
    Micro SD port
    Power Supply Li Battery with large capacity and of no memory effect, potent for 6~8 hours
    In-built charger (or outsource); AC power: 220V
    Ultrasonic Standards compatible with EN12668-1
    in accordance with JB/T 10061-1999
    Weight around 1.50kg (in-built battery and charger)
    Dimension 246mm×166mm×47mm
