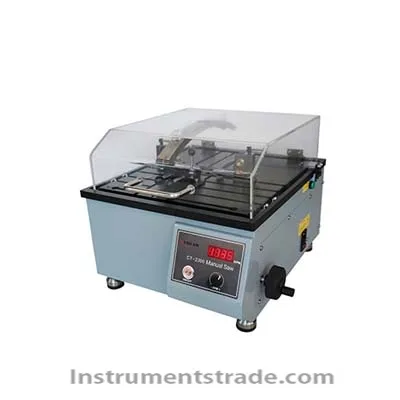

CT-2300 Precision Cutting Machine Introduction: CT-2300 is a simple desktop manual flat cutting machine. Widely used for cutting PCB boards, semiconductor components, wafer ceramics, quartz glass, and lithological samples. characteristic: 1. You can choose between dry cutting or wet cutting mode; 2. T-shaped slot clamping device, convenient fixture installation; 3. Fully transparent high-strength cover, easy to observe the cutting process; 4. The upper cover can be set to "unlock" mode, which can be used for cutting samples beyond the platform range specifications; 5. The speed can be adjusted between 200-3000 revolutions per minute; 6. The motor is equipped with a cooling fan and overload protection. Technical parameters: Model: CT-2300 Manual cutting method; Sample fixation, blade forward and backward feed Cutting blade outer diameter: Φ 180-230mm Inner hole: 12.7mm Speed: 200~3000rpm Maximum cutting capacity for circular surfaces: Φ 30mm Maximum cutting aspect: Φ 30x50mm Cutting platform stroke: 100mm Size WxD: 350x370mm Electric cutting motor power: 900W Voltage: 110/220V, (1Ph/N/PE) Cooling method: blade immersion type Water tank: Built in, with a capacity of approximately 3L Dimensions W × D × H: 470x505x359 (closed lid) 470x556x631 (open lid) Weight 45kg
Introduction: CT-2300 is a simple desktop manual flat cutting machine. Widely used for cutting PCB boards, semiconductor components, wafer ceramics, quartz glass, and lithological samples.
