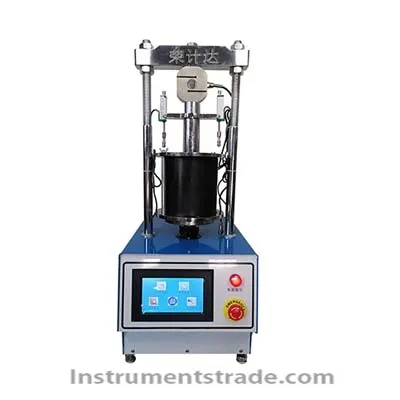

CBR Bearing Ratio Tester Introduction: The CBR bearing ratio tester is suitable for conducting bearing ratio tests on various soils and mixtures (soil with particle size less than 40mm) after compaction in a specified test tube mold, to determine the bearing capacity of the designed pavement, pavement base layer, sub base layer, and subgrade material layer. The instrument consists of a main unit, a measuring ring, a penetration rod, an additional planting plate, a dial gauge, an expansion measurement device, etc. The instrument has the characteristics of small size, high output, and easy operation. Technical parameters: Speed: 1mm/min, high pressure 3T Penetrating rod: end face diameter of 50mm. Inner diameter of 52mm, length of 100mm Porous plate: two pieces Dial gauge: 0~10mm, three pieces of diameter Load plate: 6 pieces (outer diameter of 150mm, inner diameter of 52mm, each weighing 1.25Kg) Test tube: inner diameter of 125mm, height of 170mm, cushion block of 151mm, height of 50mm, same as heavy-duty compaction test tube. Dimensions: 310X310X930mm Weight: 100kg
Introduction: The CBR bearing ratio tester is suitable for conducting bearing ratio tests on various soils and mixtures (soil with particle size less than 40mm) after compaction in a specified test tube mold, to determine the bearing capacity of the designed pavement, pavement base layer, sub base layer, and subgrade material layer. The instrument consists of a main unit, a measuring ring, a penetration rod, an additional planting plate, a dial gauge, an expansion measurement device, etc. The instrument has the characteristics of small size, high output, and easy operation.
