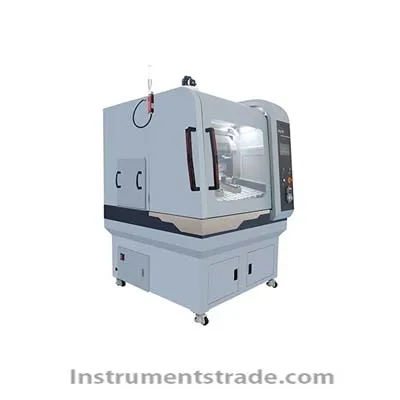

Beta-500 automatic cutting machine Introduction: Beta-500 is a fully automatic large-scale vertical cutting machine suitable for cutting various metal materials, ceramics, quartz glass, and lithological samples. It can achieve fully automatic cutting of XYZR four axes, with multiple sections of unequal thickness and angles (R axis is an optional function). characteristic: 1.XYZR four axis fully automatic control. The R axis (rotation/angle) is optional; 2. It can achieve multi segment continuous cutting of the X axis (R axis), with equal thickness (angle), and can also be specified at any position; 3. Large workbench and cutting room; The size of the workbench is 728x832mm. The cutting chamber has a size of 1248x1220 and a height of 900mm; 4. Can hold ultra long specimens that can be passed through left and right; 5. Simulation function for cutting routes; 6. Configure wireless handwheel to control the movement of four axes and achieve fast tool alignment; 7. The integrated cast aluminum base and reliable powder coating ensure durability and prevent rusting; 8. 10 inch large touch screen; 9. The floor standing independent water tank has a large capacity and is easy to remove and clean; 10. Configure magnetic separator and paper tape filtering system; 11. Laser knife alignment device. Technical parameters: 1. Model: Beta-500 2. Cutting blades Speed: 500~2500rpm Diameter: Φ 508mm Central hole: Φ 32mm 3. Electrical Input: 3x380V/50Hz+neutral wire+ground wire Cutting power: 15KW (S1) 4. Cutting ability Maximum diameter: Φ 190mm Maximum square cross-section: 190x360mm 5. Intelligent cutting Cutting mode: Vertical cutting/Horizontal cutting/Segmented cutting/Continuous cutting/Angular cutting (optional) Feed mode: constant speed cutting/pulse cutting/automatic speed regulation 6. Travel: Z-direction (vertical): 330mm, Y-direction (front back): 500mm; X direction (left and right): 550mm 7. Workbench Size: 832x728mm (WxD) T-shaped groove: 12mm 8. Angle cutting (optional) Workbench size: Φ 600mm Automatic cutting quantity: 20mm 9. Cooling Water tank capacity: 200L Water tank size: 1500x900x650mm Interface water inlet: Φ 19 inner diameter high-pressure pipe; Water outlet: Φ 80 inner diameter hose Flow rate: 100L/minute 10. Filtering Method: Paper tape+magnetic separator Accuracy: 30um 11. Oil mist collector (optional) Power: 0.37KW Airflow: 600m ³/h 12. Weight Host: 1450KG Water tank: 155KG
Introduction: Beta-500 is a fully automatic large-scale vertical cutting machine suitable for cutting various metal materials, ceramics, quartz glass, and lithological samples. It can achieve fully automatic cutting of XYZR four axes, with multiple sections of unequal thickness and angles (R axis is an optional function).
