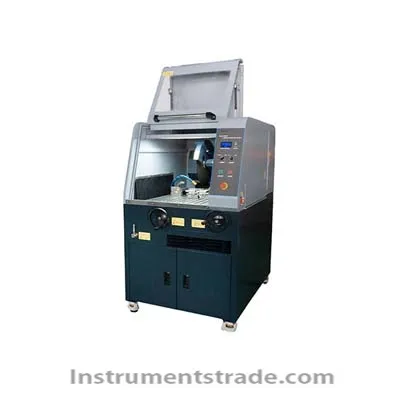

Beta-400MA automatic cutting machine Introduction: Beta-400MA is a large-scale hand to body cutting machine suitable for cutting various metal materials, ceramics, quartz glass, and lithological samples. The equipment is equipped with multiple fixtures, which can cut irregularly shaped workpieces and achieve automatic/manual feed cutting (Y-axis) of the worktable, automatic chopping cutting (Z-axis) of the cutting blade, and flexible and automatic cutting methods, greatly avoiding burns to the sample. characteristic: 1. Cast aluminum base, 304 stainless steel machine cover, overall strong rigidity, more durable, corrosion-resistant; 2. Use the joystick to control the YZ axis for easier and faster tool alignment; 3. Large workbench and operating space; 4. The X-axis platform can be manually moved to achieve one-time clamping and multiple cutting; 5. With one click flushing function, it can quickly remove water mist on the window and flush away debris inside the cutting chamber; 6. Equipped with ventilation and air purification devices, it quickly removes water vapor in the cutting room and purifies the odors generated during cutting; 7. The floor standing independent water tank has a large capacity and is easy to remove and clean; 8. Equipped with laser knife alignment device. Technical parameters: 1. Model: Beta-400 MA 2. Cutting blades Speed: 800&2000rpm Diameter: Φ 400~450mm Center hole: 32mm 3. Electrical Input: 3x380V/50Hz+neutral wire+ground wire Cutting power: 7.5KW 4. Safety Emergency stop, all screen prompt functions have stopped: press to cut off the control circuit Quick braking: cutting is completed, and the cutting blade stops within 2 seconds Security door lock: cannot be activated when the door is opened; During operation, the door is locked and cannot be opened Joystick: requires dual hand control Overload protection: Automatic shutdown due to overload current Anti misoperation 5. Control Display/control: 7-inch touch screen Z-axis feed: automatic feed/joystick control; 0.01~3mm/s Y-axis feed: manual and automatic feed/handwheel, joystick control: 0.01~5mm/s X-axis feed: manually controlled by handwheel, with an accuracy of 0.1mm 6. Cooling Water tank capacity: 130L Water tank size: 1200x450x610mm (WxDxH, with water pump) Interface: Inlet: Φ 19 inner diameter high-pressure pipe; Water outlet: equipped with drainage channel Waterway: 4 cooling pipes, flow rate: 100L/minute: limit switch+set maximum travel+set minimum position to prevent the worktable from being accidentally switched or exceeded 7. Intelligent cutting Cutting mode: manual mode/Y-axis mode/Z-axis mode Speed regulation mode: constant speed cutting/pulse cutting/automatic speed regulation 8. Cutting ability: Φ 400 blade Maximum diameter: Φ 150mm Maximum square cross-section: 120x350mm (requires at least two cuts) 9. Workbench Size (WXD): 438X388mm T-shaped groove: 12mm Travel: Z-direction: 210, Y-direction: 370, X-direction: 210mm 10. Size W × D × H: 1017 × 1317 × 1729mm (closed); 1851 × 1774 × 2224mm (open lid) 11. Weight Host: 550kg Water tank: 40kg
Introduction: Beta-400MA is a large-scale hand to body cutting machine suitable for cutting various metal materials, ceramics, quartz glass, and lithological samples. The equipment is equipped with multiple fixtures, which can cut irregularly shaped workpieces and achieve automatic/manual feed cutting (Y-axis) of the worktable, automatic chopping cutting (Z-axis) of the cutting blade, and flexible and automatic cutting methods, greatly avoiding burns to the sample.
