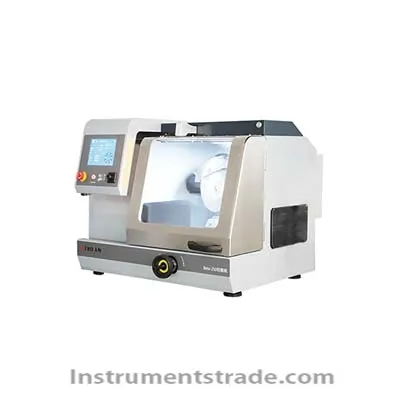

Beta-250 Fully Automatic Cutting Machine Introduction: Beta-250 is a fully automatic cutting machine suitable for cutting various metal materials, ceramics, quartz glass, and lithological samples. It can achieve fully automatic cutting of XYZ three-axis and automatic cutting of multiple sections with uneven thickness. characteristic: 1. XYZ three-axis fully automatic control 2. Large workbench and cutting room; The size of the workbench is 300 * 280mm. 3. It can hold ultra long specimens that can be connected left and right; 4. 8-inch large touch screen; 5. Laser alignment device; Technical parameters: 1. Model: Beta-250 2. Cutting blades Speed: 500~2500rpm Diameter: Φ 254mm Central hole: Φ 32mm 3. Electrical Input: 3x380V/50Hz+neutral wire+ground wire Cutting power: 3.8KW 4. Cutting ability Maximum diameter: Φ 85mm Maximum square cross-section: 85x250mm 5. Intelligent cutting Cutting mode: vertical cutting/horizontal cutting/segmented cutting/continuous cutting Feed mode: constant speed cutting/pulse cutting/automatic speed regulation 6. Journey: Y direction (front and back): 250; X direction (left and right): 100 7. Workbench Size: 280x300 (WxD) T-shaped groove: 12mm
Introduction: Beta-250 is a fully automatic cutting machine suitable for cutting various metal materials, ceramics, quartz glass, and lithological samples. It can achieve fully automatic cutting of XYZ three-axis and automatic cutting of multiple sections with uneven thickness.
