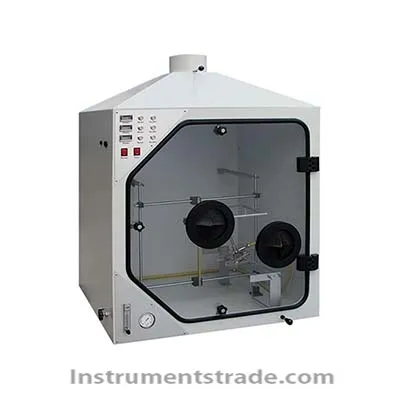

Brief introduction: Plastic combustion smoke density meter is based on national standard GB8323.2-2008 in the technical conditions stipulated in the research and development of a new type of determination of smoke density test equipment, is suitable for the determination of smoke produced by burning plastic than light density, and the biggest than light density of the test results. It is used to assess smoke properties of plastic under prescribed conditions. The instrument system is measured by the airtight test chamber, photometer, radiation cone, ignition, combustion system, test box, stents, thermometer of table and smoke density test software; Circuit by single chip microcomputer development, the technology content high, stable performance. This instrument is suitable for all plastic, also can be applied to evaluation of other materials such as rubber, textiles, covers, coat of paint, wood and other materials, plastic industry, production factories and research of the solid materials industry unit is widely used. Technical indicators: Smoke box size: 914 mm + / - 3 mm long, 610 mm + / - 3 mm wide, 914 mm + / - 3 mm. Instrument size: 1110 mm - 10 mm long, 750 mm - 10 mm wide, 2040 mm - 10 mm. Power: 220 v, 4 kw. The total power of the (should indicate the equipment) Density (smoke) 0-924 sixth gear shift automatically Measuring range: 0.0001-100%; Measuring accuracy: + / - 3%; Working voltage: 200-240 v, 50 hz; Temperature: room temperature 40 ℃ Relative humidity: 85% or less. Work environment: the instrument is running, should avoid direct light, no forced air flow phenomenon. Measuring software: in the WINDOWS XP operating interface, and the main data has smoke light plot, the test than light density, quality optical density, mass loss and mass loss rate, average smoke density, etc. Also a calibration, editing, testing operation interface, parameter adjusting, etc. LabVIEW style. Show transmittance curves with time. Sample size: 75 x 75 mm. Light source voltage: 6.5 V working voltage: 4 V + / - 0.2 V. Light source color temperature: 2200 k + 2200 k.
Brief introduction: Plastic combustion smoke density meter is based on national standard GB8323.2-2008 in the technical conditions stipulated in the research and development of a new type of determination of smoke density test equipment, is suitable for the determination of smoke produced by burning plastic than light density, and the biggest than light density of the test results.
