ATP3030 ultra high resolution fiber optic spectrometer

Product ID:FGgx032

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberATP3030
    Brand NameAOPUTIANCHENG
    Payment TermsT/T, paypal

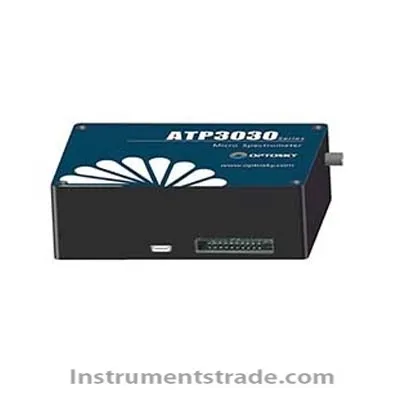

    ATP3030 ultra high resolution fiber optic spectrometer

    Introduction:
    The ATP3030 is an ultra-high resolution miniature spectrometer newly developed by Biostar. The highest resolution up to 0.05nm, suitable for a variety of high-resolution applications, high-reliability, ultra-high-speed, low-cost, cost-effective and other characteristics, can adapt to a variety of environmental applications such as online testing
    Features
    Built-in xenon lamp synchronous trigger control circuit
    Spectral range: 200-1100 nm;
    Spectral resolution: 0.05-2 nm;
    Optical path structure: non-intersecting C-T;
    Detector: 2048 or 4096 pixels;
    Integration time: 0.1ms-256s;
    Power supply: DC 5V USB power supply;
    ADC bit depth: 16 bits;
    ADC sampling rate: 2MHz;
    Data output interface: USB Type-C;
    30-pin expansion interface;
    Application field
    Plasma luminescence detection;
    LIBS
    Raman spectroscopy;
    Wavelength monitoring, laser, LED and other illuminants
    Water quality analyzer
    Ultraviolet flue gas analyzer
    LED sorting machine, color detection;
    Trace, fast spectrophotometer;
    Spectral analysis, spectroscopic analysis, spectrophotometric analysis
    Reflection, transmission spectroscopy
    Technical parameter:
    Detector
    Type Linear array detector
    Detectable range 200-1100 nm
    Effective pixel 2048 or 4096 pixels
    Pixel dimension 14μm × 200μm
    Sensitivity 1300 V/(lx·s)
    Dark noise 13 RMS @ 13 ˚C
    Optical Parameter
    Wavelength range 200-1100 nm
    Optical resolution 0.07-3 nm
    Signal-to-noise >600:1
    Dynamic range 8.5 x 107 (system); 2000:1 for a single acquisition
    Stray light <0.05% at 600 nm; <0.09% at 435 nm
    Working temperature -25-50 oC
    Working humidity < 90%RH
    Optical Configuration
    Optical Design Czerny-Turner
    Focal Distance 75mm
    Incidence slit 50 μm (10, 25, 100 um are optional)
    Incident Interface SMA905 connector
    Electrical Parameter
    Integration time 0.1 ms - 256 second
    Interfaces USB Type-C
    A/D conversion resolution 16 bit
    Supply voltage DC4.5 to 5.5 V (type @5V)
    Operating current 170mA@Typ.
    Storage temperature -30°C to +70°C
    Operating temperature -25-50 oC
    Physics Parameter
    Dimension 124 × 90 × 37.5 mm
    weight 0.5kg
    Sealing Anti-sweat

  • Introduction:
    The ATP3030 is an ultra-high resolution miniature spectrometer newly developed by Biostar. The highest resolution up to 0.05nm, suitable for a variety of high-resolution applications, high-reliability, ultra-high-speed, low-cost, cost-effective and other characteristics, can adapt to a variety of environmental applications such as online testing
