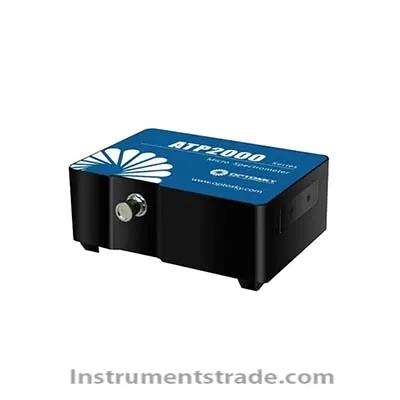

ATP2000-Micro Fiber Spectrometer Introduction: The ATP2000 is a multi-purpose spectrometer with ultra-high speed, low cost, high cost performance and multiple breakthrough technologies. The ATP2000 uses a 2048-pixel linear CCD that can be used in the 200-1100nm wavelength range. The CCD detector exposure time can be controlled within 1ms, allowing customers to precisely control the signal-to-noise ratio of the spectrometer. ATP2000 is ideal for UV, visible, and near-infrared spectroscopy applications. Different slits, gratings, mirrors, and filters are available. Depending on your needs, the spectrometer can be configured for different applications. The spectrum range is from 200nm. Up to 1050nm, the spectral resolution can be chosen from 0.5 to 4.0nm, and the company can also provide OEM customers with customized options. The ATP2000 can receive the SMA905 interface fiber input or free space input of the light to be measured, measure according to the set integration time, and output the measurement result through USB2.0 (high speed) or UART output; Features: Spectral range: 200-1100 nm; Optical path structure: cross C-T optical path; Detector: 2048 pixel CCD; Integration time: 1ms-130s Power supply: DC 5V (can be directly taken from USB); ADC bit depth: 16 bits; ADC sampling rate: 2MHz; Optical input interface: SM905 fiber interface or free space input; Data output interface: USB2.0 (high speed) or UART; 20-pin expansion interface; application: LED sorting machine; Multi-parameter online water quality analyzer; Trace, fast spectrophotometer; Fluorescence Spectrometer; biomedical analyzer; Transmission rate detection; Reflectivity detection LIBS; Technical Parameters: Type: Linear CCD Detection spectral range: 200-1100 nm Effective pixels: 2048 Cell size: 14μm × 200μm Full scale range: ~100 ke- Sensitivity: 130 Photon @ 400 nm; 60 Photon @ 600 nm Dark noise: 48.6 RMS @ 0 ̊C; 57.8 RMS @ 13 ̊C (10s Integration) Wavelength range: 200-400nm, 200-850nm, 200-1000 nm, etc., can be customized in different ranges Optical resolution: 0.1-4 nm (depending on slit, spectral range) SQ: >300:1 Dynamic range: 1300:1 Working temperature: 0-40 oC Operating humidity: < 90% RH Optical design: f/4 cross-symmetric C-T optical path Focal length: 40 mm for incidence / 60 mm for output Incident slit width: 5, 10, 25, 50, 100, 150, 200 μm optional, other sizes can be customized Incident optical interface: SMA905 fiber interface, free space Integration time: 1 ms - 130 second Data output interface: USB 2.0 ADC bit depth: 16 bit Power supply: DC4.5 to 5.5 V (type @5V) Working current: 170mA@Typ. Storage temperature: -20°C to +70°C Operating temperature: 0°C to +50°C Size: 102 × 720 × 34 mm3 Weight: 0.2 kg
ATP2000 high cost performance optical fiber spectrometer is an ultra high speed, low cost, high cost performance, multi-purpose spectrometer with many breakthrough technologies. ATP2000 cost-effective optical fiber spectrometer uses a 2048 pixel linear CCD, which can adapt to the test in the 200-1100nm wavelength range. The exposure time of the CCD detector can be controlled within 1ms, and the customer can accurately control the signal-to-noise ratio of the spectrometer.
