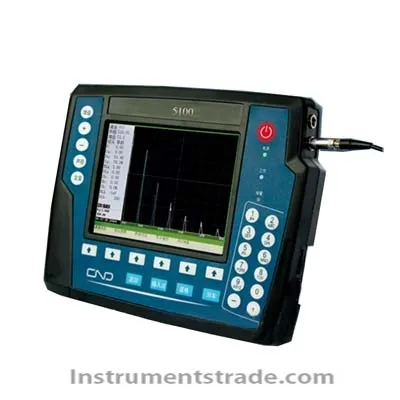

Introduction: The 5100 digital ultrasonic flaw detector can detect internal defects (such as cracks, inclusions, pores, etc.) and can automatically locate, evaluate and diagnose. The instrument is suitable for flaw detection of materials and components such as forgings, castings, plates, pipes, bars, steel pipe alloy parts. Widely used in laboratories, special inspection institutes, shipbuilding, petroleum and natural gas equipment, aerospace, military, chemical, electric power, steel, metallurgy, railways, automobile manufacturing, machinery, boilers and pressure vessels, special equipment, petroleum pipelines, construction, molds Manufacturing and other industries. Features: 1. High-speed, high-brightness, 640×480 high-resolution color display, normal work under strong light, one-button operation, making flaw detection very simple and fast, and an electronic manual is included to help prompt the operation steps to understand the flaw detection method 2. One-key operation to quickly detect flaws, and prompt flaw detection help information at any time 3. Automatically test the probe zero point, sound velocity and K value 4. Automatically make DAC and AVG curves 5. Automatic gain and search memory high wave 6. Automatic display of defect echo position (level, depth, distance, equivalent value) 7. Sound and light alarm of automatic gate (free adjustment of door position, door width and door height) 8. Freely switch 100 sets of flaw detection channel technology 9. Freely enter the flaw detection standards of various industries 10. All imported original motherboard components 11. Large-capacity storage, 6000 inspection data space, data will not be lost after power failure 12. Long working time, no memory high-efficiency lithium battery, continuous working time greater than 8 hours 13. Ethernet high-speed data transmission, browser can directly read and print flaw detection report 14. Long-term dynamic recording of flaw detection waveforms 15. Channel password setting, flaw detectors can pre-store their own flaw detection channels, which can be stored for a long time without being modified by others 16. Two-way communication, users can edit their own flaw detection report format technical parameter: Frequency range: 0.4-20MHz Gain range: 0-120dB, 0.1, 2.0, 6.0dB step Dynamic range: 32dB Vertical linearity: <3% Horizontal linearity: 0 within 1m Scanning range: 0.5-9999mm Resolution: >40dB Sensitivity margin: >62dB Working mode: single/double, penetrating Pulse generator: variable pulse generator Damping: 50/100/400Ω automatic matching Detection method: half wave/RF Inhibition: 0-99% linear inhibition Display environment temperature: -20~50℃ Charger: 220-240V AC input Working voltage: 7.4V±0.3V Size: 215*175*33mm (length * width * thickness) Weight: 1Kg
Introduction: The 5100 digital ultrasonic flaw detector can detect internal defects (such as cracks, inclusions, pores, etc.) and can automatically locate, evaluate and diagnose. The instrument is suitable for flaw detection of materials and components such as forgings, castings, plates, pipes, bars, steel pipe alloy parts. Widely used in laboratories, special inspection institutes, shipbuilding, petroleum and natural gas equipment, aerospace, military, chemical, electric power, steel, metallurgy, railways, automobile manufacturing, machinery, boilers and pressure vessels, special equipment, petroleum pipelines, construction, molds Manufacturing and other industries.
