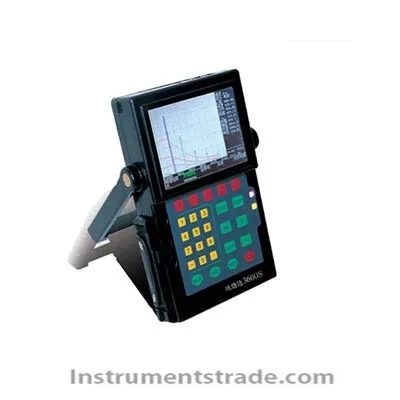

3600S digital ultrasonic flaw detector Introduction: High speed, bright large screen color display, working normally under strong light; Quick inspection with one click operation, prompt for inspection assistance information at any time; 3.30 independent flaw detection channels and 1000 pieces of flaw detection data storage; No memory effect efficient lithium battery, ensuring continuous power operation for 6 hours Features: 1. Maximum sampling rate 240MHz, measurement resolution 0.01mm 2. Test the zero point, sound velocity, and K value of the probe 3. Working mode: single crystal probe, double crystal probe, penetration probe 4. Create DAC and AVG curves 5. Automatic gain, combined with peak envelope line and image freezing function, can quickly determine the maximum wave and crack length of defects, making inspection more efficient 6. Through the echo extension function, the echo area inside the gate can be enlarged to the entire screen, displaying the defect echo position (horizontal, depth, distance, equivalent value) 7. Gate sound and light alarm (free adjustment of door position, width, and height) 8. Generate standard flaw detection report 9. Switching 30 sets of flaw detection channel processes 10. Free input of various industry inspection standards 11. High speed, bright large screen color field display, working normally under strong light 12. One click operation for quick inspection, prompt for inspection assistance information at any time 13. Large capacity storage, 1000 pieces of flaw detection data space, no data loss after power failure 14. Long working hours, no memory efficient lithium battery, continuous working time greater than 6 hours Technical parameters: Frequency range: 0.4-20MHZ Gain range: 0-120dB, 0.1,2.0,6.0 dB step by step Dynamic range: ＞ 40dB Vertical linearity:<3% Horizontal linearity: ＜ 0.1% Scanning range: 0-6000mm Resolution: ＞ 45 dB Sensitivity margin: ＞ 60 dB (depth 200mm) Φ 2 flat bottom holes) Attenuator accuracy: ＜± 1dB/12dB Working mode: single probe, double crystal probe, penetration probe Pulse generator: Variable pulse generator Damping: 50/100/500 Ω automatic matching Digital suppression: 0-99% linear suppression, without affecting linearity and gain Gate: inlet gate, loss gate; Single gate reading, double gate reading Alarm: Beep alarm, LED light alarm Display ambient temperature: -20-50 ° C Relative humidity: (20~95)% RH Charger: 220-240V AC input Working voltage: 7.4V ± 0.3V Size: 250 * 150 * 38mm Weight: 1.28KG
Introduction: High speed, bright large screen color display, working normally under strong light; Quick inspection with one click operation, prompt for inspection assistance information at any time; 3.30 independent flaw detection channels and 1000 pieces of flaw detection data storage; No memory effect efficient lithium battery, ensuring continuous power operation for 6 hours
