Introduction:

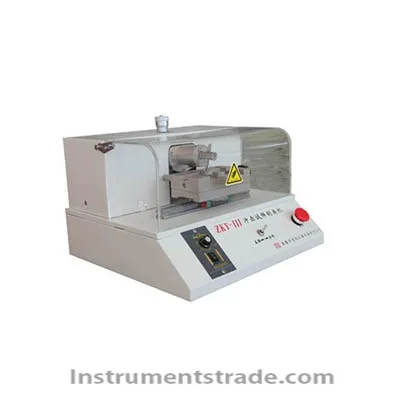

ZKY-III semi-automatic notch prototype for cantilever beam, Charpy impact testing machine to do non-metallic material impact toughness test notch specimens used in the equipment can be a fixture of 20 samples, every 10 minutes notch sample 60 processing More than the size of the gap made of accurate, high efficiency, greatly reducing the operating strength. In line with ISO179-2000, ISO180-2001 and GB / T1043-2008, GB / T1843-2008 standards. Technical Parameters:
Workbench travel:> 90mm
Feed speed: 0 ~ 90mm / min
Adapt to the sample: 80mm × 10mm × 4mm (can be customized)
The type of notch made: Type A Tool Size: 45 ° ± 0.2 ° r = 0.25 ± 0.05
Type B Tool Size: 45 ° ± 0.2 ° r = 1.0 ± 0.05
C-type tool size: 45 ° ± 0.2 ° r = 0.1 ± 0.02
The whole machine with a knife, with a plus 1000 yuan each
Feed rate: 0 ~ 2.5mm optional
Feed travel: 10mm
Overall dimensions: 400 × 270 × 300mm
Supply voltage: (220-15% ~ 220 + 10%) VAC 50Hz single-phase three-wire
