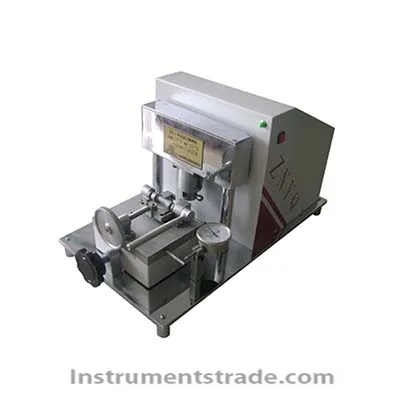

Introduction: This machine is mainly used for processing plastic notch and cantilever beam impact test of the experimental gap, with high precision, easy to use and other characteristics of the gap made in line with GB1843-96ISO gap requirements. Specifications: 1. Motor: 220V 100W 2. Tool feed accuracy: 0.01mm 3. Table size (length × width) 140 × 145mm 4 tool travel: 24mm Main configuration: a. host one b. a sample knife Notch angle: 45 degrees ± 1 degree ;; gap at the bottom of the arc radius: r = 0.25 ± 0.05mm, tool length: 50mm; Notched angle: 45 degrees ± 1 degree; notched bottom radius of the arc: r = 1.0 ± 0.05mm, tool length: 50mm Instructions: 1 The button light is on before the power is turned on. 2. The sample close to the table before the file, and pressed. 3. When the scale of the machine indicates 5mm at zero point, on this basis, rotate the scale, the workbench forward to the required system depth. 4.Turn the handwheel to the right when the workbench goes up, and when it turns to the left, the workbench descends. 5. The same percentage can not adjust the continuous system can be made when the mouth depth changes, the scale should be left to 6mm re-feed to zero (5mm).
