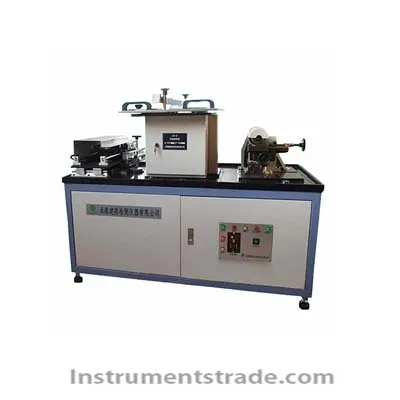

Introduction: ZHY-W universal prototype is mainly used for processing plastic, plexiglass and other non-metallic materials impact, tensile, compression, thermal deformation, Vicat can test the standard sample. This machine is equipped with special tools (CVD diamond coated carbide cutting tools) for cutting, dumbbell and plane milling of FRP products, as well as notched specimens of fiber reinforced plastics and resin castings. The machine is equipped with cooling circulating water (antirust grinding liquid), cooling the sample in the process, washed away cutting, lubricating the tool and the mold to reduce the wear of the grinding wheel and improve the finish of the workpiece. The use of dust for the WPC material to prevent the processing of dust on the environment pollution and reduce the harm to the human body. Is a focus on environmentally-friendly processing machine. Is the institutions of higher learning, quality arbitration, research institutes, manufacturers of material testing essential sample preparation machinery. The machine adopts the technology of separation by cutter and cutter, which greatly improves the price accuracy of the sample! Technical surgery: Maximum cutting length: 300mm Maximum cutting thickness: 20mm Maximum milling plane length: 300mm Cutting cutter (grinding wheel) Specifications: φ200 × φ32 × 2mm Milling notched cutter length: 50mm Tool shape and size: A type 45 ° ± 1 ° R0.25 ± 0.05 Dumbbell processing plane cutter specifications: φ30 × φ12 × 30mm (eight teeth) Machine shape: 1050 × 600 × 960mm Cutting part of the spindle speed: 1450 r / min Milling dumbbell cutter Speed: 2800 r / min Milling feed rate: 0 ~ 180mm / min adjustable Milling notched cutter speed: 400r / min Cooling water flow: 14L / min Cutting motor: 750W Milling notched motor: 60W Milling dumbbell motor: 180W Dumbbell feed motor: 60W Circulating pump: 40W
Introduction: ZHY-W universal prototype is mainly used for processing plastic, plexiglass and other non-metallic materials impact, tensile, compression, thermal deformation, Vicat can test the standard sample. This machine is equipped with special tools (CVD diamond coated carbide cutting tools) for cutting, dumbbell and plane milling of FRP products, as well as notched specimens of fiber reinforced plastics and resin castings. The machine is equipped with cooling circulating water (antirust grinding liquid), cooling the sample in the process, washed away cutting, lubricating the tool and the mold to reduce the wear of the grinding wheel and improve the finish of the workpiece. The use of dust for the WPC material to prevent the processing of dust on the environment pollution and reduce the harm to the human body. Is a focus on environmentally-friendly processing machine. Is the institutions of higher learning, quality arbitration, research institutes, manufacturers of material testing essential sample preparation machinery. The machine adopts the technology of separation by cutter and cutter, which greatly improves the price accuracy of the sample!
