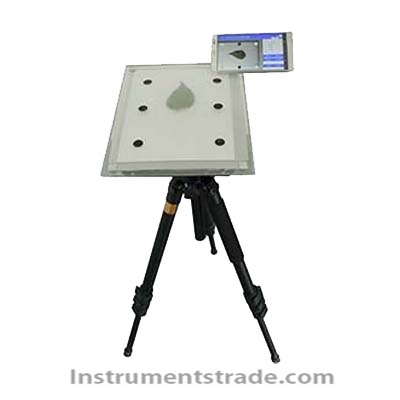

YMJ - CH intelligent leaf area meter for Plant analysis

Product ID:SHZWymj003

Price: Please inquire PDF Format
Supply Ability:SHZWymj003
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberYMJ - CH
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    Intelligent leaf area measurement system is consists of a backlight device and tablet with embedded software. USES the advanced image processing technology, according to the characters of leaf extract, space transformation, edge detection principle, morphological technologies such as integrated design of the software. Gf is applied in field crops in the field of agriculture leaf area measurement.
    Features:
    1. The android system has simple operation, and application of humanization, intelligent and can upgrade.
    2. 7 inches full color hand touch screen, 8 million pixels, photographed after the software automatically calculate the leaf area, the output.
    3. The storage powerful, with 16 gb memory card.
    4. Look at diverse data: data can be stored and to view reports, also can export Excel spreadsheets to computer or WiFi uploaded to the server. Intelligent data statistics and analysis.
    5. With manual correction function, can be cut, repair, automatic cut petioles, etc., to ensure high precision measurement.
    6. There are general, dark and light color optional three kinds of algorithms, taking pictures, can choose the appropriate algorithm, according to the leaf color to ensure accuracy.
    7. After taking pictures, the system can automatically calculate the area, perimeter, leaf length, leaf width, number of wormhole and with screen.
    Technical parameters:
    Scope of application: different sizes of green leaves, yellow leaves, red leaves, such as common plant leaves
    Measuring range: 5 ~ 100 square centimeters
    Capsule counting accuracy: do not add back plate plus or minus 3%, plus the back plate + / - 2%;
    Hand-held technology parameters:
    The software system: Android4.2.2 above
    Size: 7 inch hand full color touch screen
    The rear camera: 8 million
    Resolution: 1920 * 1200
    16 g memory:
    The network interface: WiFi / 4 g
    Standard charging power supply: DC5V1A
    YMJ - CH background plate device:
    Background plate light source: highlight LED lights
    The power interface: DC - 2.1
    Standard power supply: DC5V5A
    Scope of supply: DC5 ~ 12 v
    The shell material: acrylic shell, material has chemical stability and weather resistance
    Unit size: 250 * 180 * 1.5
    Transparent cover size: 250 * 180 * 0.5
    Weight: 0.2 kg


  • Intelligent leaf area measurement system is consists of a backlight device and tablet with embedded software. USES the advanced image processing technology, according to the characters of leaf extract, space transformation, edge detection principle, morphological technologies such as integrated design of the software.
