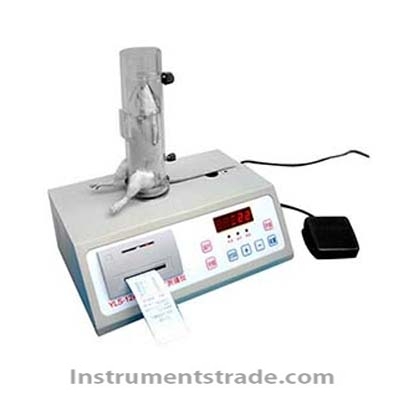

YLS-12A rat tail light pain tester for Drug research

Product ID:SHDWcty002

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberYLS-12A
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    Light spin method is also called hot guy or radiant heat left tail, its basic principle is to a beam of light to the rat tail set heating, make the local heating of rat tail produces pain, when more than animals endure the pain threshold of animal produce effective spin to escape, this method to determine the level and change animal pain threshold method is called light spin.
    Features:
    1. CNC FM light intensity stability, adjustable;
    Article 2. The treated type infrared radiation in the rat tail uniform temperature rise;
    3. Timing accuracy as high as 0.01 seconds;
    4. Using vertical pack rats, mice and rats tail easy positioning;
    5. Manual and automatic photoelectric timer clock optional;
    6. Built-in micro printer.
    Technical indicators:
    1. The instrument USES infrared light bar;
    2. The light power range: 23 w - 38 w, 16 level set, adjust the step length is 1 w;
    3. The maximum illumination time is 16 seconds (avoid rat tail burns);
    4. Minimum timing unit 0.01 seconds;
    5. Manual or photoelectric two optional time way;
    6. Set electric clocks run continuously within 10 years, need time to adjust;
    7. Bring the micro printer, two kinds of printing way (storage printing and instant printing);
    8. With microcomputer data interface and data communication program;
    9. The instrument memory 10 sets of data, each group of 100 data;
    10. The instrument bearing mice and rats each of a set of fixed tube frame (cylinder five sets of mice, rats tube two a);
    11. The input voltage: AC 220 v + / - 5%;
    12. The maximum input power: 50 w;
    13. The instrument appearance size: 335 * 230 * 230 mm;
    14. Weight: 3.5 kg




  • Light spin method is also called hot guy or radiant heat left tail, its basic principle is to a beam of light to the rat tail set heating, make the local heating of rat tail produces pain, when more than animals endure the pain threshold of animal produce effective spin to escape, this method to determine the level and change animal pain threshold method is called light spin.
