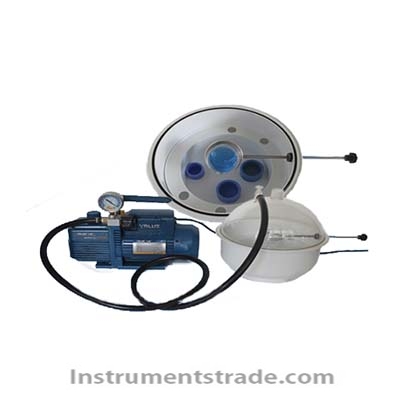

XQ-3000 Vacuum Cold Mounting Machine Introduction: TheXQ-3000 Vacuum Cold Mounting Machine can eliminate air contained in the sample. If there is no air present, the embedded compound will fill the gaps in the sample, eliminating the gaps between the sample and the compound. Therefore, edge preservation is strengthened, and fragile samples are well supported during grinding and polishing processes. A sturdy vacuum pump can provide sufficient vacuum to quickly remove any air trapped in porous samples. By utilizing the unique rotating cup holder inside the vacuum container, multiple samples can be vacuum impregnated at the same time. Design a unique pouring mechanism that allows pre mixed inlay compounds to be placed in the cavity and then poured into the mold in one go. Suitable for embedding (cold) compounds of various epoxy resins and polyester castables. Due to the sample being encapsulated in a vacuum state, the possibility of air entering is completely eliminated. Technical parameters: Mold diameter 30mm, soft mold Maximum vacuum degree of vacuum pump:- 0.1Mpa， Extraction rate: 7.2 m ³/h The maximum number of samples that can be embedded is greater than 10 (when embedding molds with a diameter of 30mm) Dimensions of vacuum container: 300Lx 300W x 300H mm Vacuum pump: 340Lx 130W x 270H mm Power supply 220V, 50/60Hz, 370W Weight of vacuum container: 1.15kg Vacuum pump: 11.5kg
Introduction: TheXQ-3000 Vacuum Cold Mounting Machine can eliminate air contained in the sample. If there is no air present, the embedded compound will fill the gaps in the sample, eliminating the gaps between the sample and the compound. Therefore, edge preservation is strengthened, and fragile samples are well supported during grinding and polishing processes. A sturdy vacuum pump can provide sufficient vacuum to quickly remove any air trapped in porous samples. By utilizing the unique rotating cup holder inside the vacuum container, multiple samples can be vacuum impregnated at the same time. Design a unique pouring mechanism that allows pre mixed inlay compounds to be placed in the cavity and then poured into the mold in one go. Suitable for embedding (cold) compounds of various epoxy resins and polyester castables. Due to the sample being encapsulated in a vacuum state, the possibility of air entering is completely eliminated.
