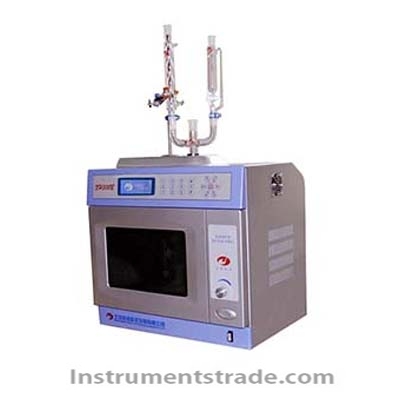

XH-300UL1 Ultrasonic UV microwave extraction system

Product ID：SYFL/CQwb001

Price: US$18,500.00 ~ US$20,000.00 PDF Format

Supply Ability:20sets/mon

Port:shenzhen

Product Introduction
Consulting

Model NumberXH-300UL1
Brand NameYIMA
Payment TermsT/T, paypal

Products
XH300UL PC ultrasonic ultraviolet combination microwave synthesizer is to electromagnetic waves, sound waves , light waves perfect combination of new combinations of
synthetic instruments .
The instrument uses microwave thermal effect and non-thermal effects reduce the
activation energy of the molecule ; the use of ultrasonic cavitation and mechanical action of accelerating dissolution of the solute in the cavitation bubbles collapse , causing a
great concentration of energy ; using ultraviolet radiation absorption of a photon of the
molecule , the internal electronic level transition occurs , an unstable excited state , and
further dissociation or other reaction occurs . Due to absorption of a given wavelength of a photon is often molecule nature of the group , provided the photocatalytic a specific
location in the molecule react with thebest means .
Product features
Instrument with microwave irradiation, ultrasound irradiation, ultraviolet wave of three
models. High-power non-invasive ultrasonic transducer can work under 300 °C, 25 KHZ
frequency, arbitrary adjustable pulse work way, automatic control technology and
frequency
automatic tracking technology, to realize automatic frequency tracking. Ultrasonic
transmission power
overrun automatic adjustment and overtemperature protection and alarm function.
Sensor temperature
measurement with high precision, automatic ultrasonic mode changing, reaches the
preset temperature
to avoid the ultrasonic heating and can't control the reactant temperature problem.
Instruments have uv light intensity measurement shows that can provide effective data. Shows the experimental process, parameters can be modified at any time, the experimental process is more simple, result more ideal.Open reaction system, can install the dropping funnel and condenser pipe reflux reaction, etc.
Microwave synthesis model can provide different speed of magnetic stirring, make the reaction morefully, more uniform temperature.
Technical parameters
1. Has the three functions for microwave irradiation, ultrasound irradiation, ultraviolet irradiation, can be arbitrary combination can also be single mode, set arbitrary;
2. microwave power: 0 ~ 1000 w; Ultrasonic power: 0 ~ 1500 w continuous adjustable;
3. The microwave frequency: 2450 MHZ; 1 KHZ ultrasonic frequency: 25 +;
4. The instrument has ultrasonic power is constant, constant temperature optional;
5. Ultrasonic frequency automatic locking frequency search function, can change in the
nature of the reactants and consistency when keep the loudest power;
6.10Program performs segmentation work: you can set the period of working parameters, ultrasonic,microwave, each working section can be set arbitrary power, time, can choose different work mode, and can store set up parameters;
7. Uv wavelength of 365 nm, power: 250 w;
8. Ultraviolet irradiation intensity probe measuring range: 0.1 ~ 1.999 X 105 mu w/Cm2
real-time display;
9. The ultraviolet band area miscellaneous light: UV365: less than 0.02%;
10. The temperature test temperature control range: 0-300 °C; Temperature measuring
accuracy: plus or minus 0.2 °C or less; Temperature control precision: + / - 1 °C or less;
11. Work time: 99 hours continuous work, ultrasonic pulse time arbitrary adjustable;
12. The ultrasonic working conditions: 0 ~ 300 °C;
13. The reaction volume: 10 ~ 1000 ml; Equipped with 50 ml, 250 ml, 500 ml, 500 ml
flask quartz glass;
14. The ultrasonic probe diameter: 8 mm, 18 mm suited to different caliber of reaction
container;
15. The selflearning function of the advanced computer control, full automatic intelligent
control thermal power;
16. Color LCD display, megapixel camera real-time online observation of images;
17. The high accuracy non-contact sensor, real-time detection of temperature, the
accurate control of reaction process;
18. Provide different speed of magnetic stirring and built-in mechanical agitation, make
the reaction more fully, more uniform temperature;
19. The inert gas protection interface, open reaction system, can be installed dropping
funnel and condenser pipe reflux reaction etc.;
Austenitic stainless steel, special reaction cavity, including magnetic, strong corrosion
resistance;
21. The microwave leakage is superior to national standards.

XH300UL PC ultrasonic ultraviolet combination microwave synthesizer is to electromagnetic waves, sound waves , light waves perfect combination of new combinations of

synthetic instruments .

The instrument uses microwave thermal effect and non-thermal effects reduce the

activation energy of the molecule ; the use of ultrasonic cavitation and mechanical action of accelerating dissolution of the solute in the cavitation bubbles collapse , causing a

great concentration of energy ; using ultraviolet radiation absorption of a photon of the

molecule , the internal electronic level transition occurs , an unstable excited state , and

further dissociation or other reaction occurs . Due to absorption of a given wavelength of a photon is often molecule nature of the group , provided the photocatalytic a specific

location in the molecule react with thebest means .
