Product introduction

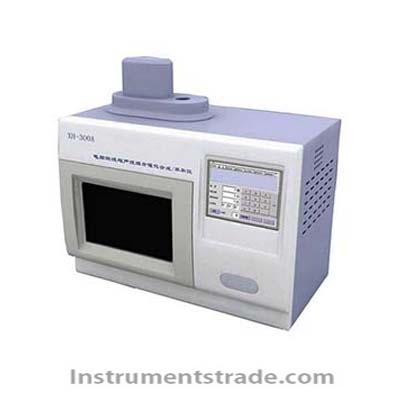

This computer microwave ultrasonic composite catalytic synthesis of extraction
apparatus is based on the advanced embedded control technology, microwave, ultrasonic technology is applied in the chemical synthesis of high and new technology products.
The instrument has powerful digital processing, realtime display and record the response online image data and curve, have to save and playback function. Program control
reaction conditions, the experiment can be divided into multiple work stage,and can
save and query per second experimental parameters. Product features
USB interface can connect the mouse and USB flash drive, download and store
response data at anytime. Reaction, may at any time the screen to switch into a reaction chamber in video images, real-time monitoring reaction and extraction process. Open
reaction system, can install the dropping funnel and condenser pipe reflux reaction, etc. Microwave synthesis model can provide different speed of magnetic stirring, make the reaction more fully, more uniform temperature. USB interface can connect the mouse and USB flash drive, download and store response data at any time. Reaction, may at any
time the screen to switch into a reaction chamber in video images, realtime monitoring
reaction and extraction process. Open reaction system, can install the dropping
funnel and condenser pipe reflux reaction, etc. Microwave synthesis model can provide
different speed of magnetic stirring, make the reaction more fully, more uniform
temperature. Technical parameters
1. The microwave power: 0 ~ 1000 w; Ultrasonic power: 0 ~ 1500 w continuous
adjustable;
2. The microwave frequency: 2450 MHZ; Ultrasonic frequency: 25 KHZ;
3. Test temperature control range: 0 ~ 300 °C temperature control precision: + / - 1 °C or less;
4. Work time: working 10 hours straight, three gears adjustable ultrasonic pulse time;
5. Water-cooled type ultrasonic transducer, ultrasonic working environment: 0 ~ 300 °C;
6. The reaction volume: portfolio model 10 ~ 500 ml, single mode 10 ~ 1000 ml;
7. The ultrasonic probe diameter:8 mm, 18 mmsuited to different caliber of reaction
container;
8. Use 32-bit high-performance embedded chips, multiprocessor control. 2 gb memory
card, USB interface, can the
experiment parameters and curve graph is stored on the machine or U disk, read at any
time. The experimenter can online real-time test data, the temperature curve, power
curve,and with data playback, save Settings, queries per second test parameters of the
function.
9. 8 inch color LCD touch screen, through the screen prompt gently to complete the
operation process. At any time and will switch the screen into a reaction chamber in
video images, real-time monitoring reaction and extraction process, the reaction
parameters screen
