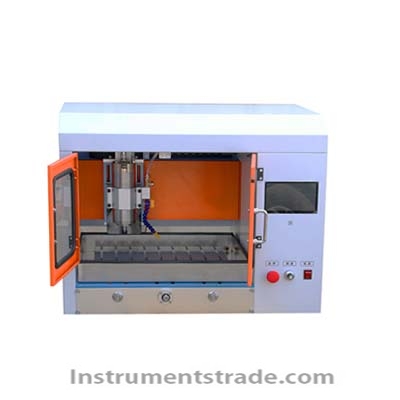

Introduction: WZY-4030 CNC Universal Prototyping Machine adopts CNC technology, controls the three-axis linkage system through the program controller, drives the XYZ axis motor and is supplemented by the high-speed spindle motor to form a high-precision processing system to realize the spline cutting and dumbbell-shaped non-metallic plates Specimen milling and impact notch milling functions, and can mill non-metallic materials of any shape, and process them into plates and various specimens. This machine has the incomparable characteristics of the traditional universal sample preparation machine. First of all, the shape of the sample produced by it is not limited by the machine. As long as the program is provided, it can produce samples of various shapes, such as bar, dumbbell, round, and various irregularities. Graphics, etc., unlike the traditional universal prototype machine, which can only produce bar-shaped and dumbbell-shaped samples, and can only produce dumbbell-shaped samples corresponding to the template. Secondly, its precision is very high, whether it is cutting splines or milling dumbbells, its machining error is only 0.05mm. Moreover, it is basically not limited by the shape of the sample. As long as it can be clamped on the platform, it can be processed. The splines that meet the size requirements are milled, and special-shaped materials are processed into flat plates. Technical parameter: 1 Processing length: 300mm (with dust cover) 400mm (without dust cover) 2 Processing width: 300mm 3 Processing thickness: 20mm 4 Spindle motor speed: 24000r/min 5 Gap processing 5.1 The width of the notch jaw is adjustable from 0 to 280mm. 5.2 The number of 4mm thick splines processed at one time is not less than 60. 6 Control mode: manual control, program control 7 Software function 7.1 The dumbbell-shaped sample preparation procedure covers all common materials, and the corresponding sample preparation can be completed by selecting the corresponding procedure. 7.2 Rectangular spline sample block making function, suitable for making impact spline, thermal deformation spline, Vicat sample block and other rectangular samples of specifications. 7.3 Notch sample preparation function, multiple samples can be stacked on the platform and processed at the same time. The processing of gaps of different specifications can be realized by changing the tool. 7.4 Plate cutting function, cut larger plates. 7.5 Plane milling and elevation milling functions are used to process special-shaped materials and some materials removed from the entire machine into flat plates, and then process them into required samples. 7.6 Automatic control of spindle motor cooling water, milling cutter cooling water, and vacuum cleaner 7.7 The following functions can be selected through the controller: milling dumbbell, milling notch, milling spline (sample), cutting, milling plane, milling elevation, the graphic data of milling dumbbell is provided by the manufacturer, and the machine has built-in commonly used dumbbell specimens Standard data, if the user has special standards or processing special shape samples, please contact our company at any time to provide the figure size, our company can provide the processing data, and save it to the memory card for processing. Other functions only need to set the size of length, width and height to process.
