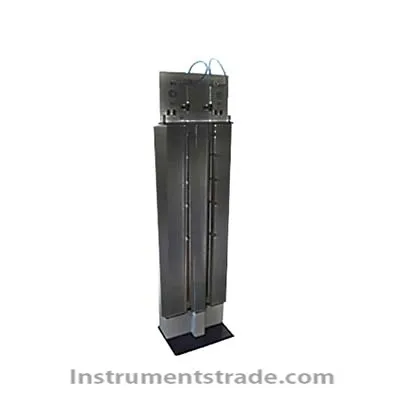

WM721A liquid petroleum product hydrocarbon analyzer Introduction
WM721A liquid petroleum product hydrocarbon analyzer meets GB-T11132 standard. Use fluorescent indicators to display the main hydrocarbons in liquid petroleum products on silica gel adsorption columns, and then calculate their volume percentages. Technical Parameters
Imported precision inner diameter adsorption column
Length of adsorption column: 1650mm
Accuracy of analysis section: the variation within 100mm does not exceed 0.3mm
The mercury column with a length of about 100mm in any part of the analysis section does not vary by more than 0.3mm in length.
Can detect the number of adsorption columns at the same time: 2
Compressed air is supplied by an oil-free air compressor, and the pressure is adjusted by an air pressure reducing valve (the valve has been adjusted before leaving the factory, and the user does not need to manually adjust it). 103kPa
UV light: light wavelength 365nm power 40W
Instrument dimensions: 400 × 350 × 1720mm
Weight: 20Kg
Tube: 1220mm
WM721A liquid petroleum product hydrocarbon analyzer meets GB-T11132 standard. WM721A liquid petroleum product hydrocarbon analyzer uses a fluorescent indicator to display the main hydrocarbons in liquid petroleum products on a silica gel adsorption column, and then calculates its volume percentage.
