WM320 Grease Copper Sheet Corrosion Tester Feature
1. The measuring instrument conforms to the national standard "GB / T 7326-87 Grease Copper Sheet Corrosion Test Method".
2. The core host uses TI's AM3354 processor, Cortex-A8 core, and 1GHz frequency; the operating system uses Windows Embedded Compact 7 real-time industrial control system. Completely abandoning the non-nuclear and non-streaking streak single-chip microcomputer, truly realizing the modernization of instrument control, making the instrument enter a new era of intelligence.
3. The display uses Innolux's original 7.0-inch 800 x 480-pixel true color TFT-LCD liquid crystal display with full Chinese operation interface, which is delicate and intuitive.
4. The operation uses a capacitive touch screen, which has the advantages of no mechanical loss, dust and water resistance, anti-radio frequency interference, and long service life.
5. The rear USB interface can be used for later software updates, and can also be connected to a mouse for precise operation.
6. Using 4 independent all-metal baths, it can perform asynchronous experiments on 4 samples at the same time.
7. Controlled temperature and temperature detection The original imported PT100 platinum resistance temperature sensor is used in conjunction with a high-precision AD converter to control the electric heating pipe through an excellent linear mathematical model and a unique control algorithm, making the temperature measurement and control faster, more accurate, and more stable. .
8. Equipped with setting parameter storage function. After power off, restart the machine to keep the last parameter setting.
9. Equipped with a colorimetric plate, which provides clear image development and standard color samples for easy comparison. Technical Parameters
1. Number of constant temperature baths: 4 (can be controlled independently).
2. Temperature control range: room temperature to 300 ° C (arbitrarily set).
3. Temperature control accuracy: ± 0.1 ℃.
4. Operation mode: touch screen operation, easy to use and more intuitive operation
5. Rated power: 1.5kW.
6. Ambient temperature: 10 ℃ ～ 40 ℃,
7. Ambient humidity: ≤85% RH.
8. Power supply voltage: 220 ± 10% V.AC
9. Power frequency: 50 ± 10% Hz
Introduction

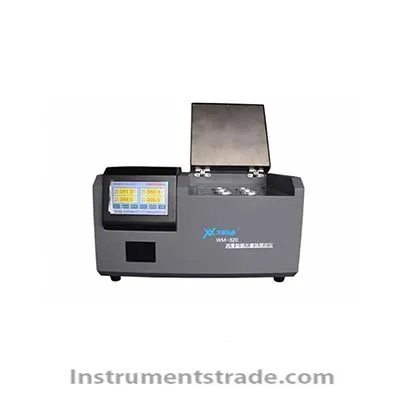

WM320 grease copper sheet corrosion tester complies with the national standard GB / T 7326-87 Grease Copper Sheet Corrosion Test Method. WM320 Grease Copper Sheet Corrosion Tester is equipped with a colorimetric plate, which provides clear images and standard color samples for easy comparison.
