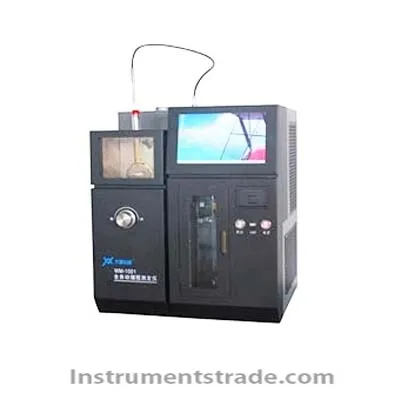

WM1001 automatic distillation range tester (single tube) Features
1. Implementation standards GB / T 7534, GB / T 3146, GB / T 6536, GB / T 18255, GB / T 2282, GB / T 2538. Widely used in petroleum, chemical, metallurgy, power, transportation, commodity inspection and scientific research departments.
2. This instrument adopts contemporary advanced technology, integrating machinery, optics, electronics and computer technology. It adopts the original temperature measurement sensor of Germany JUMO company and the most advanced numerically controlled optical detection system in the world. It is used for the distillation characteristics of gasoline, diesel, kerosene, fuel oil and other mineral oils under normal pressure.
3. The instrument can be monitored by a computer (wireless / wired communication, optional by the user).
The instrument has a reasonable structure, stable performance and simple operation, and is an ideal analysis and detection equipment.
The instrument can add different standards according to user requirements, which are selected by the user.
4. Intelligent heating management system to ensure that the distillation rate meets the requirements of the experimental method.
5. The user can set the recording point by himself:
The user can set the recovery volume to record the corresponding temperature. The user can set to record the temperature corresponding to the recovered volume.
Automatically record the recording points specified by the national standard.
6. Five ways to end the experiment:
End of dry point: End the experiment when a dry point is detected.
End of boiling point: End the experiment when the boiling point is detected, and print out.
End of temperature: end the experiment according to the temperature value set by the user and print it out;
End of volume: end the experiment according to the volume value set by the user and print it out;
Keyboard end: press the exit key to end the experiment and print it out.
7. Anti-bumping safety scheme to ensure safe operation.
8. Anti-overheating intelligent control to ensure the accuracy of boiling range data.
9. Equipped with internal clock, no need to input test date. Technical Parameters
1. Temperature measurement range: 0 ～ 400 ℃ Resolution: 0.1 ℃.
2. Volume detection range: 0-100ml, resolution: 0.1ml.
3. Water bath constant temperature range: 20 ± 4 ℃ (below 250 ℃), 55 ± 5 ℃ (above 250 ℃) automatically switch
4. Distillation rate: 2 ~ 4ml / min (less than 250 ℃); 4 ~ 5ml / min (more than 250 ℃) automatic control.
5.The speed can be adjusted automatically according to the implementation of national standards
6. Temperature measuring element: PT100 (the original temperature measuring sensor from German JUMO company)
7. Heating method: infrared radiation heating
8. Refrigeration method: compressor refrigeration (DANFOSS)
9. Initial distillation time: 5-10 minutes (user-defined)
10. Operation mode: keyboard control, program starts automatically
11, data parameters: fully automatic LCD display data, no manual operation required.
12. Display: 9-inch LCD display, Chinese interface operation Use environment: the ambient temperature is 15 ～ 45 ℃, the relative humidity is less than 80% RH.
13. Power supply: AC220V ± 10%, 50 ± 2Hz.
14. Dimensions: 360 × 300 × 220
15. Instrument weight: 10Kg
Introduction
WM1001 automatic distillation range tester implements the standards GB / T 7534, GB / T 3146, GB / T 6536, GB / T 18255, GB / T 2282, GB / T 2538. WM1001 automatic distillation range tester is widely used in petroleum, chemical, metallurgy, power, transportation, commodity inspection and scientific research departments.
