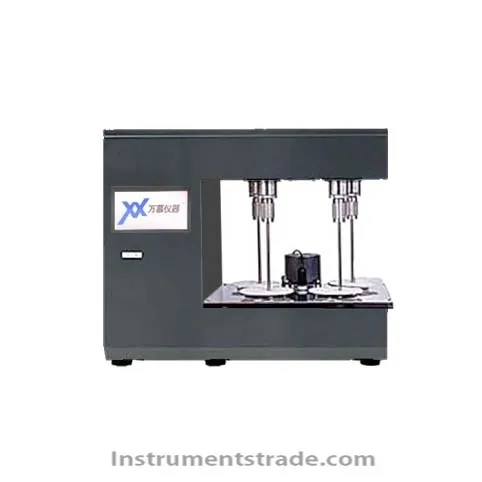

WM-210A liquid phase corrosion tester Features
1.Implement national standard GB / T11143-2008. Widely used in petroleum, chemical, metallurgy, power, transportation, commodity inspection and scientific research departments.
2.The core host uses a 100MHZ high-speed single-chip computer with a display driver module, keyboard scanning module, ± 5ppm high-precision clock module, RS-232 serial communication module, NVM data storage module, output control module, buzzer alarm module, etc. , Complete functions.
3.The display uses 5.0-inch 480 x 272-pixel true-color TFT-LCD LCD screen imported from the original, with full Chinese operation interface, exquisite and intuitive display.
4.The keyboard uses human-sensitive touch keys, no mechanical contacts, dust and water resistance, anti-radio frequency interference, and longer service life.
5.The temperature measurement and control uses the original imported PT100 platinum resistance temperature sensor, high-precision AD converter, excellent linearized mathematical model, and unique control algorithm, which makes the temperature measurement and control faster, more accurate, and more stable.
6.Simultaneous and asynchronous measurement can be performed on four samples simultaneously. Technical Parameters
Temperature control range: room temperature ～ 120 ℃
Temperature control accuracy: 0.1 ℃
Timing time: 0 ～ 48 hours
Ambient temperature: room temperature to 45 ° C
Ambient humidity: ≤85%
Power supply voltage: 220 ± 5% V.AC
Power frequency: 50 ± 2.5% Hz
Power consumption: 2000W
Dimensions: 730 × 400 × 500
Instrument weight: 50Kg
Features
1.Implement national standard GB / T11143-2008. Widely used in petroleum, chemical, metallurgy, power, transportation, commodity inspection and scientific research departments.
2.The core host uses a 100MHZ high-speed single-chip computer with a display driver module, keyboard scanning module, ± 5ppm high-precision clock module, RS-232 serial communication module, NVM data storage module, output control module, buzzer alarm module, etc. , Complete functions.
3.The display uses 5.0-inch 480 x 272-pixel true-color TFT-LCD LCD screen imported from the original, with full Chinese operation interface, exquisite and intuitive display.
4.The keyboard uses human-sensitive touch keys, no mechanical contacts, dust and water resistance, anti-radio frequency interference, and longer service life.
5.The temperature measurement and control uses the original imported PT100 platinum resistance temperature sensor, high-precision AD converter, excellent linearized mathematical model, and unique control algorithm, which makes the temperature measurement and control faster, more accurate, and more stable.
6.Simultaneous and asynchronous measurement can be performed on four samples simultaneously.
