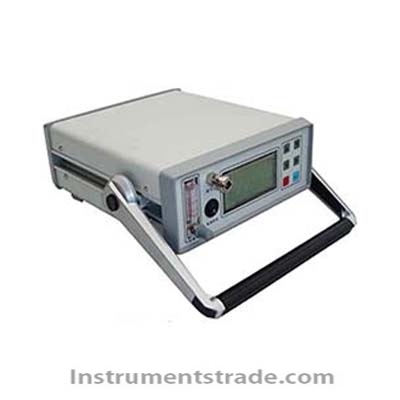

WL-IV intelligent micro-water meter Introduction:
WL-IV intelligent micro-water meter is the company's newly developed modern, high-level, intelligent measuring instruments. The instrument has the advanced features of similar instruments in terms of measurement principle, degree of automation, and convenience of use. In particular, the European standard technology is adopted to ensure accurate and reliable data.
WL-IV intelligent micro-water measuring instrument wide measuring range, fast response time, short measuring cycle, intuitive display, easy to operate. This instrument is suitable for a wide range of applications. The humidity measurement of air, nitrogen, inert gas and any non-corrosive gas is especially suitable for the humidity measurement of SF6 gas. The power, petrochemical, metallurgy, environmental protection, scientific research institutes and other departments Can be used, has a very high price. Features:
1, rapid measurement: no need to preheat the boot, quickly reach the dew point saturation.
2, rapid gas-saving: determination of gas consumption only 2L (101.2kPa) or so.
3, self-locking connector: imported from Germany, self-locking connector, safe, reliable, seamless.
4, data storage: the use of large-capacity design, up to 60 sets of test data can be stored.
5, clear display: LCD display directly to the dew point, water (ppm), ambient temperature, humidity, time and date, battery power and so on.
6, portable design: lighter equipment, portable, easy to use.
7, built-in power supply: built-in rechargeable battery, a sufficient time for 8 hours of continuous work. Technical Parameters
1, measuring range: -80 ℃ ~ +20 ℃ (dew point)
2, the measurement accuracy: ± 2 ℃ (-80 ℃ ~ -50 ℃)
± 1 ℃ (-49 ℃ ~ +20 ℃) (working range)
3, measurement time: ≤ 3 minutes / point
4, sampling flow: 300ml / min ± 20%
5, Display: LCD, full Chinese interface, with backlight
6, power supply: AC and DC, rechargeable battery can work continuously for 8 hours
7, test mode: boot from school function
8, the whole weight: 3.5kg
9, machine size: length × width × height = 250mm × 300mm × 100mm
