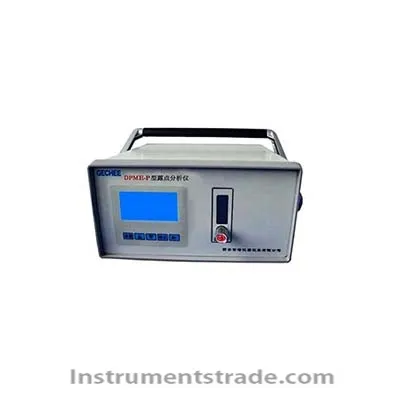

DPME-P1 portable dew point analyzer Introduction
DPME-P1 dewpoint meter , the use of capacitive sensors , its working principle is based on changes in the concentration of water molecules on the capacitance value , and thus measure the moisture content of trace gases . Imported alumina or polymer film sensor and advanced digital processing technology, the rapid succession of trace moisture -line analysis . Features
Using 128 * 64LCD monitor , desktop or panel mounted , easy to install
Imported dew point sensor , long life , high sensitivity , fast response
Built-in high -capacity long-life lithium battery, the battery level display, automatic voltage protection , a charge can be used continuously for more than 8 hours
Data backup, data recovery
Chinese operation menu ( English custom )
Built- precision air pump ( optional ) Technical parameters
Measuring range : +20 ~ -100 °C 0-1000PPmv ( range optional )
Resolution : 0.1 °C; simultaneously display PPmv, mg/m3
Accuracy : ≤ ± 2 °C
Repeatability : ≤ ± 1.5 °C
Response time : T90 ≤ 5min ( from low humidity to high humidity )
Warm-up time : ≤ 5min
Sample gas flow : 2000 ± 100mL
Sample gas pressure : 0.1Mpa ≤ inlet pressure ≤ 0.2Mpa
Power supply : 100 ~ 240VAC 50/60Hz 1A
Ambient temperature : -5 °C ~ +45 °C
Humidity : ≤ 90% RH
Dimensions:
Standard - 260 ( W ) × 145 ( height ) × 330 ( depth ), (mm)
Weight: about 3.5kg
Introduction
DPME-P1 dewpoint meter , the use of capacitive sensors , its working principle is based on changes in the concentration of water molecules on the capacitance value , and thus measure the moisture content of trace gases . Imported alumina or polymer film sensor and advanced digital processing technology, the rapid succession of trace moisture -line analysis .
