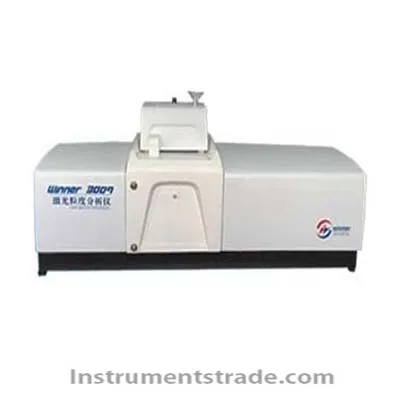

Winner3009 intelligent dry process large-range laser particle size analyzer

Product ID：WLjg076

Price: Please inquire PDF Format

Supply Ability:80 SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberWinner3009

Brand NameJINANWEINAKELI

Payment TermsT/T, paypal

Winner3009 intelligent dry process large-range laser particle size analyzer
Introduction
Winner3009 is a newly upgraded sixth-generation intelligent dry-process large-range laser particle size analyzer. It adopts advanced testing principles, fully automatic operation methods and intelligent data analysis to ensure the extremely high accuracy and repeatability of this instrument. , Realize the accurate, repeatable and sensitive efficient combination of laser particle size analyzer! It is the preferred instrument for testing particles with wider distribution and larger particle size.
Winner3009 dry laser particle size analyzer is suitable for cement, ceramics, pharmaceuticals, dyes, pigments, fillers, chemical products, catalysts, coal powder, dust, additives, pesticides, explosives, graphite, photosensitive materials, fuel, metal and non-metal powders, carbonic acid Calcium, kaolin and other powder industries are more applicable and practical, especially for Chinese herbal medicines, magnetic materials, and powder industries with relatively wide distribution and large particles, where chemical reactions, shape changes and losses occur in liquids.
Features
Innovative patented technology significantly improves the test resolution: the use of convergent light Fourier transform patented technology not only overcomes the limitation of the lens aperture on the scattering angle, but also achieves a wide range of range expansion in a limited space, and adds multiple auxiliary integrated optoelectronics The detector can effectively collect the scattered light at various angles corresponding to the test range to achieve test accuracy and reliability within the full range.
Scientific and reasonable dry dispersion system: the patented turbulent dispersion technology uses the shearing effect of shock waves to achieve full dispersion of the particle sample. The key parts of the dispersion system use wear-resistant ceramics, which not only improves the service life, but also guarantees the test The result is more accurate and stable.
Intelligent operation mode: It has an intelligent automatic operation mode to realize one-key testing, that is, as long as the sample is added, the "automatic test" button on the first-stage control panel is started. The operation process of all instruments includes dust collection, gas supply, and feeding. Automatic completion, the operator only needs to operate the computer, which not only reduces the workload of the operator, but more importantly eliminates the errors caused by human factors, and further improves the test accuracy and the authenticity of the results.
Spectrum amplification technology: enhance the sensitivity of the probe to the signal, greatly improving the test range; the use of convergent light Fourier transform patented technology, so that the large-angle scattered light is not limited by the lens aperture, effectively improving the resolution of the instrument.
Technical parameter

Specification model		Winner3009A	Winner3009B
Executive Standard		ISO 13320:2009，GB/T 19077-2016，Q/0100JWN001-2013
Test Range		0.1-2000μm		0.1-1200μm
Number of detector channels		100		97
Accuracy error		<1% (D50 value of standard sample)
Repeatability error		<1% (D50 value of standard sample)
Laser parameters		High-performance He-Ne laser λ = 632.8nm, p> 2.0mW, service life:> 25000H
Dispersion method		Dry turbulent dispersion and forward shock wave shearing technology
Operating mode		Manual / fully automatic operation mode can be switched
Software function	Analysis mode	Including free distribution, R-R distribution and logarithmic normal distribution, grading statistical mode according to mesh, etc., to meet the different requirements of different industries on the statistical method of sample size measurement.
	Statistical methods	Volume distribution and quantity distribution to meet different statistical methods for particle size distribution in different industries.
	Statistical comparison	Statistical comparison and analysis can be performed on multiple test results, which can clearly compare the differences between different batches of samples, samples before and after processing, and test results at different times, which has a strong practical significance for the quality control of industrial raw materials.
	Custom analysis	User-defined analysis parameters, find percentage based on particle size, calculate particle size according to percentage, or calculate percentage according to particle size interval, to meet the characterization of particle size testing in different industries.
	testing report	The test report can export documents in various forms such as Word, Excel, Picture (Bmp), and Text (Text) to meet the test results cited in the test report and scientific research articles in any occasion.
	Multilingual support	Chinese and English language interface support, and other language interfaces can also be embedded according to user requirements.
	Intelligent operation mode	It has an intelligent operation mode, which can automatically control the test process steps, which not only reduces the workload of testers, but also has better repeatability of test results due to no human interference.
Test speed		<1min / time
Air compressor parameters		Oil-free mute, air source pressure 0.1-0.8MPA continuously adjustable, with air dust, water mist filtering function
volume		1040mm440mm540mm
weight		58kg
