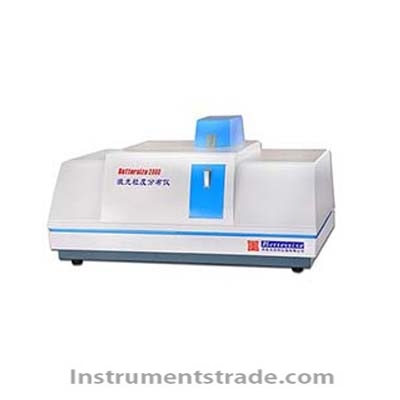

Bettersize2000 laser particle size analyzer

Product ID:WLjg006

US$15,000.00 ~ US$20,000.00 PDF Format
Supply Ability:20
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberBettersize2000
    Brand NameYIMA
    Payment TermsT/T ,Western Union, PAYPAL
    Product Introduction
    BT-9300ST laser particle size analyzer all its operations all done automatically under computer control , automatic testing, automatic optical calibration ( automatic ), the automatic water , automatic drainage , automatically eliminate bubbles, automatic cleaning and other special features.
    Basic Features
    1. Intelligent standard operating procedures (SOP) designs. In addition to adding the sample , all other operations automatically. Reducing errors caused by human factors , improve test accuracy.
    2. The original calibration function : All instruments are calibrated by fully guarantee the accuracy of the test results. At the same time , to provide users with the instrument standard samples , users can verify the accuracy of the instrument.

    3. Powerful software features. Mie scattering theory using precise inversion algorithm and free mode , you can get the real results of the particle size distribution of the sample . Report card can be easily converted into Word, Excel, PDF and other format files.
    4. Automatic cycle unique design of distributed systems . He uses advanced ultrasonic disperser excited circuit , even an empty cup will not be damaged when opened ultrasound ; circulation flow from 500-2500ml / min continuously adjustable ; automatic water level measurement , avoid media overflow ; vent valve suspension only ensure reliable emissions closed and opened, and corrosion-resistant stainless steel casing pipe so that the circulation dispersion system durability.

    5. Precision hybrid stepper motor. 1.3 micron minimum step , the focus has always been to ensure that the laser beam shines on the probe center , to improve the accuracy of the test results .
    6. Integrated design, all-plastic shell, handsome in appearance , highlighting boutique style.

    Performance indicators
    Test range : 0.02μm-2000μm.
    Injection mode: Built-in automatic cycle dispersed injection system .
    Repeatability error : < 1% ( D50 standard deviation ) .
    Accuracy error : < 1% ( D50 standard deviation ) .
    Measuring principle: Mie scattering theory .
    Laser light : imported semiconductor lasers.
    Photodetector :90

    Software operating environment : Windows XP / Win7.
    Interface : RS232 or USB mode .
    Circulation tank volume : 500ml.
    Circulation flow rate : 500-2500 ml / min .
    Stirrer speed: 500-2500 rev / min.
    Ultrasonic Power : 50W.


  • BT-9300ST laser particle size analyzer all its operations all done automatically under computer control , automatic testing, automatic optical calibration ( automatic ), the automatic water , automatic drainage , automatically eliminate bubbles, automatic cleaning and other special features.
