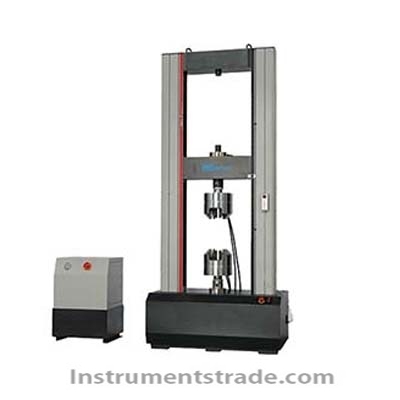

Brief introduction: WDW - 200 microcomputer control electronic universal testing machine is mainly used for metal, rubber, plastic, fiber, leather, knitting, wire, cable, construction materials, timber, such as the conveyor belt tension, compression, bending, shear, peel, tear, friction, such as mechanical property test, is a new generation of green electronic technology combined with sophisticated mechanical transmission of the new type of material testing machine. These series machines standby power consumption is low, low noise, long life, no pollution to the environment. The machine structure is reasonable, stable loading and control precision. Performance measurement and control system adopts domestic leading high-end machine with AEC - 1000 controller, cooperate with the domestic initiative of universal modular TestLive computer test software, to ensure the running of the whole system stable, accurate and reliable test measurement. Features: 1. Support multilingual interface switch, with simplified Chinese and American English, the language can be extended. 2. Dynamic display: load, displacement and deformation and test curve real-time dynamic display on the screen. 3. To support a single sample, according to the curve, and multiple sample curves overlap. 4. Load, displacement, deformation, such as channel full closed loop control, and no impact smooth switching between each other. 5. Support all kinds of metal material mechanical performance test, such as metal tensile test, compression test, bending test, shear, etc; 6. Support various non-metallic material mechanical performance test, such as wire drawing, plastic bending, the cable stripping, etc; 7. At first test control routing design, the user to see test control steps be clear at a glance, instruction type is rich, and support command parameter 8. Domestic initiative and efficient level 3 operation test data processing model, support open test data processing, support additional custom test data items, support operations review test data; 9. Characteristics of the test data can be displayed on the graph mark. Technical indicators: Product model: WDW - 200 Maximum force test: 200 kn Test force measuring range: 0.4% ~ 100% / 1% ~ 100% F.S. F.S. Test force value for accuracy: + / - 0.5% / + 1% Test force resolution: + 500000 yards, not all the step, resolution remains the same Electronic: extensometer range 50 mm and 100 mm matching, elongation maximum 50% The deformation measurement range: 1% ~ 100% F.S. Deformation value relative error: plus or minus 0.5% Deformation resolution: + 500000 yards, not all the step, resolution remains the same Big extend measurement range: 10 ~ 800 mm Large extension value relative error: plus or minus 0.5% Great extension resolution: 0.0025 mm Beam displacement relative error value: plus or minus 0.5% The displacement resolution: 0.000015 mm Beam speed adjusting range: 0.001 to 300 mm/min
Brief introduction:
WDW - 200 microcomputer control electronic universal testing machine is mainly used for metal, rubber, plastic, fiber, leather, knitting, wire, cable, construction materials, timber, such as the conveyor belt tension, compression, bending, shear, peel, tear, friction, such as mechanical property test, is a new generation of green electronic technology combined with sophisticated mechanical transmission of the new type of material testing machine. These series machines standby power consumption is low, low noise, long life, no pollution to the environment.
