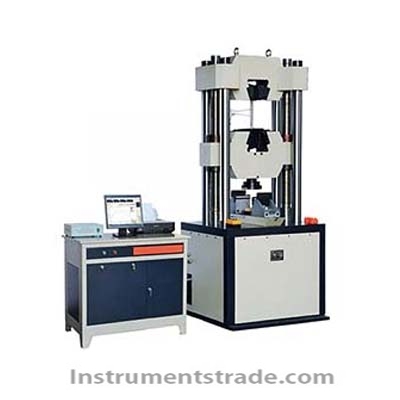

Brief introduction WAW-2000D computer controlled servo type universal testing machine host using the fuel tank mounted under the host , is mainly used for metal and nonmetal tensile , compression and bending tests. Used in metallurgy, construction, light industry , aviation, aerospace , materials, universities, research institutes and other fields. Test operations and data processing line GB228-2002 " room temperature material metal tensile test method " requirements. Technical indicators the biggest test force： 2000 kN test force measurement range： kN 2% ~ 100% FS test force of relative error value： or less value plus or minus 1% test force resolution ：0.01 kN displacement measuring resolution：0.01 mm deformation measurement accuracy ：0.01 mm maximum tensile test space： 1000 mm maximum compression space： 900 mm Piston stroke： 250 mm samples jaw clamping： Φ 15 - Φ 70 mm diameter flat specimen thickness jaw clamping： 0 to 50 mm flat sample maximum clamping width ：80 mm the pressure plate size： 204 x 204 mm The piston movement speed： 50 mm/min the host appearance size： 1420 * 1180 * 1180 mm load cabinet appearance size： 1000 * 700 * 700 mm
Brief introduction WAW-2000D computer controlled servo type universal testing machine host using the fuel tank mounted under the host , is mainly used for metal and nonmetal tensile , compression and bending tests. Used in metallurgy, construction, light industry , aviation, aerospace , materials, universities, research institutes and other fields. Test operations and data processing line GB228-2002 " room temperature material metal tensile test method " requirements.
