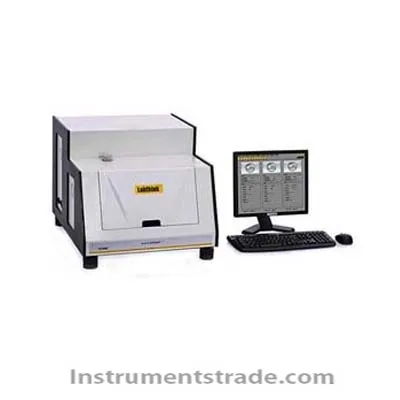

Introduction: 1, Professional - based on the cup-type test principle, is a professional water vapor transmission rate (WVTR) tester for thin-film samples; the system can be configured independently of the three permeability test cups, the test process is not only Strictly meet the standard requirements, but also fully automated control. 2. Adopt Labthink's newly designed patented mechanical structure to strictly ensure the accuracy of the permeable cup weighing process. At the same time, the device is equipped with the newly developed Labthink embedded computer system platform, whose technical advantages and user experience far surpass Traditional SCM technology. 3, with the latest Labthink operating software, user-friendly interface and intelligent data processing capabilities; the same time, in the LAN environment, also supports LystemTM laboratory data sharing system, unified management of test results and test reports. Specifications: Test range: 0.1 ~ 10,000 g / m2 • 24h (conventional) Number of samples: 1 ~ 3 pieces (the data are independent) Test accuracy: 0.01 g / m2 • 24h System resolution: 0.0001g Test temperature: 15 ℃ ~ 55 ℃ (conventional) Temperature control accuracy: ± 0.1 ℃ (conventional) Test humidity: 10% RH ~ 98% RH (standard 90% RH) Humidity control accuracy: ± 1% RH Purge wind speed: 0.5 ~ 2.5 m / s (non-standard optional) Test area: 33 cm2 Sample thickness: ≤ 3mm (other thickness can be customized) Sample size: Φ74 mm Chamber volume: 27L Air source: air Air pressure: 0.6 MPa Interface size: Φ4mm polyurethane tube Dimensions: 580mm (L) × 680mm (W) × 470mm (H) Power: AC (85 ~ 264) V (47 ~ 63) Hz Net weight: 83kg
