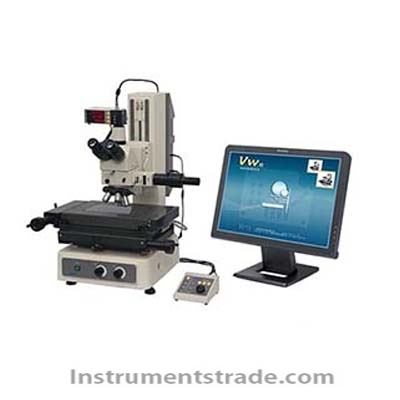

Profile: SQM-FA measuring microscope with mode of wider scope, can satisfy the users of new measurement capabilities and improve the function of constant pursuit. Provide a variety of accessories can be loaded, to meet the various needs of users. This series have many prominent characteristics, including auxiliary focusing function, excellent optical system, high brightness LED lighting, integration high rigidity processor and more excellent functions. In order to realize the measurement task of today's most urgent need and the creation. Characteristic: 1 with the aid of focusing system (FA), to achieve high precision measurement results 2 higher accuracy 3 ergonomic design 4 the larger stage improves the processing power of the workpiece 5 non-contact Z axis height measurement 6 digital imaging and image processing measurement 7 work with data processing system 8 Z axis using electric focusing control 9 the bottom light source is a powerful guarantee for the accuracy of measurement Technical parameters: Model: VITT SQM-FA Barrel: The binocular tube, with a standard camera interface; cross line (cross line); Image: Just as Observation method: Bright field observation Diopter adjustable eyepiece: 10x (field of view 20), 20x/16 optional Objective lense: The standard lens 5x, 10x, 20x, 50x Focusing system: Z axis electric control (fast, medium and slow three ways) Light source: Transmission (LED illuminator, collimated light) Drop shot (LED illuminator, coaxial light) Workbench: Measurement range: 300*200mm, 200*100mm or custom platform size Quick release device: The X and Y axes standard Zero switch: X, y, Z axis standard Length measuring system: High precision digital display grating ruler Digital counter: Minimum reading 0.5um, RS232C output External dimensions (w * w * h): 380*705*725mm Measurement accuracy: X and Y:3+L/200, L for measuring length Z axis: Max stroke: 200mm Focusing method: Electric hand wheel control
Profile: SQM-FA measuring microscope with mode of wider scope, can satisfy the users of new measurement capabilities and improve the function of constant pursuit. Provide a variety of accessories can be loaded, to meet the various needs of users. This series have many prominent characteristics, including auxiliary focusing function, excellent optical system, high brightness LED lighting, integration high rigidity processor and more excellent functions. In order to realize the measurement task of today's most urgent need and the creation.
