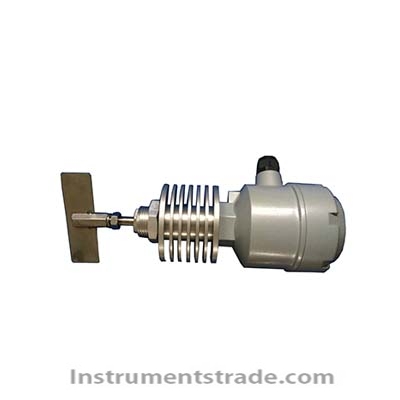

UZK-40 Resistance Rotary High Temperature Type Level Switch Introduction: The high temperature type of resistance rotary level switch is suitable for controlling the level of material in containers. The instrument adopts an oil seal design, has double-layer dust prevention, and has a clutch device to protect the motor. It is easy to use and maintain. The high temperature type of resistance rotary level switch is used in industries such as chemical, food, mining, plastics, ceramics, etc. It is an ideal and simple flow level control instrument. Technical parameters: Power supply: 220VAC, 110VAC, 24VDC Power consumption: 3W Contact capacity: AC 250V,5A SPDT Speed: 1 R P.M Torque: 0.5~1.0kg cm Working temperature: Normal type: 60 ℃ High temperature type: ≤ 200℃ Electrical interface: M20 × 1.5 internal thread Installation and usage precautions: 1. Installation should be avoided at the inlet; When installing in blocks with a particle diameter greater than 15mm or less than 7 meters below the feeding port, a probe cover should be added; When measuring powders with high viscosity, they should be installed vertically from the top of the container or inserted diagonally from the side wall. When the temperature of the probe exceeds 120 ℃, due to the shortened lifespan of the piezoelectric element, it is necessary to regularly check whether the switch action is normal.
Introduction: The high temperature type of resistance rotary level switch is suitable for controlling the level of material in containers. The instrument adopts an oil seal design, has double-layer dust prevention, and has a clutch device to protect the motor. It is easy to use and maintain. The high temperature type of resistance rotary level switch is used in industries such as chemical, food, mining, plastics, ceramics, etc. It is an ideal and simple flow level control instrument.
