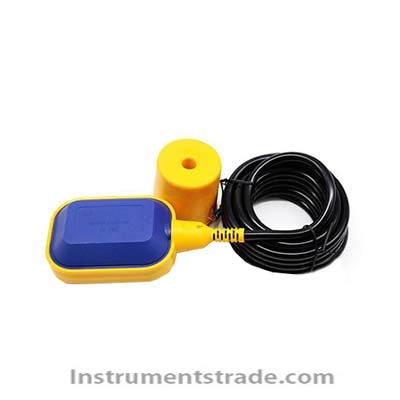

KEY cable float level switch Introduction: The Key type is a high sealing performance float switch produced by Chengbang Company. This product is suitable for controlling the operation of liquid pumps, adjusting liquid levels, and can also be installed in submersible pumps to control and protect motors. The Key float switch is designed based on the principles of gravity and buoyancy, with a simple and reasonable structure. It mainly includes a floating body, a large capacity micro switch set inside the floating body, a driving mechanism that can turn the switch on and off, and a three core cable connected to the switch. characteristic: The significant feature of this product is its stable performance (no misoperation caused by liquid level fluctuations). At the same time, it also has the characteristics of corrosion resistance, easy installation, and low price. This product can be paired with a liquid pump for automatic control of water supply, drainage, and liquid levels containing corrosive liquids. Technical parameters: model: KEY Specifications (cable length): 2m, 3m, 5m, 10m, 15m Material Cable/Shell: CR/PP、 Chloroprene rubber/polypropylene Rated current/voltage: 8A/220V AC SPDT Rated electric heating current: 15A Working environment temperature: 0-80 ℃ Electric lifespan: 1 × 100000 cycles. Mechanical lifespan: 5 × 100000 cycles. Size: 81 * 131 * 41.5mm Weight: 154 grams Volume: 243cm ³ Maximum depth: 1 bar Minimum working distance from fixed point: 20cm Working voltage: 220V. Working current: 8A.
