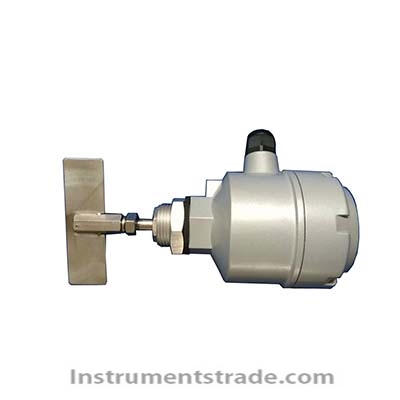

UZK-10 Resistance Rotary Level Switch Introduction: The screw type resistance rotary level switch is suitable for controlling the level of container materials. The instrument adopts an oil seal design, has double-layer dust prevention, and has a clutch device to protect the motor. It is easy to use and maintain. The screw type resistance rotary level switch is used in industrial industries such as chemical, food, mining, plastics, ceramics, etc. It is an ideal and simple flow level control instrument. Technical parameters: Power supply: 220VAC, 110VAC, 24VDC Power consumption: 3W Contact capacity: AC 250V,5A SPDT Speed: 1 R P.M Torque: 0.5~1.0kg cm Working temperature: Normal type: 60 ℃ High temperature type: ≤ 200℃ Electrical interface: M20 × 1.5 internal thread Installation and usage precautions: 1. Installation should be avoided at the inlet; When installing in blocks with a particle diameter greater than 15mm or less than 7 meters below the feeding port, a probe cover should be added; When measuring powders with high viscosity, they should be installed vertically from the top of the container or inserted diagonally from the side wall. When the probe is used at a temperature greater than 120 ℃, due to the shortening of the piezoelectric element, it should be regularly checked whether the switch action is normal.
Introduction: The screw type resistance rotary level switch is suitable for controlling the level of container materials. The instrument adopts an oil seal design, has double-layer dust prevention, and has a clutch device to protect the motor. It is easy to use and maintain. The screw type resistance rotary level switch is used in industrial industries such as chemical, food, mining, plastics, ceramics, etc. It is an ideal and simple flow level control instrument.
