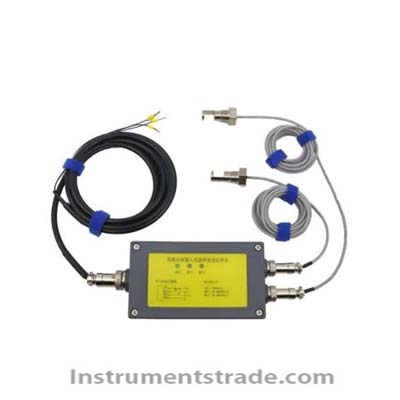

ULFI Dual Split Insertion Ultrasonic Liquid Level Switch Introduction: ULFI split insertion ultrasonic level switch is a sturdy product that can replace tuning fork level switches and magnetic spring level switches. It is designed for reliable operation in harsh application environments and is an ideal solution for level detection in storage tanks, water tanks, medical equipment test chambers, and other industrial applications. It is applicable to water, hydrocarbon based liquid, solid molten liquid (such as paraffin), and foam and condensation application scenarios (other types of sensors are easy to see foam as liquid and misoperate). The absence of mechanical moving parts significantly reduces customer downtime. characteristic: 1. No mechanical moving parts 2. Easy installation and debugging 3. No false alarm due to foam being regarded as liquid Technical parameters: Power supply: 24VDC (± 10%) Output: NPN/PNP/Relay (Basic NPN) Response time: 60ms No load current: 13mA Working temperature: Sensor -10~80 ℃, Controller -20~60 ℃ Sensor Material: Titanium Alloy Installation method: Sensor 1/4NPT, 1/2NPT M12X1.0、M12X1.5、 Other installation methods can be customized; Controller: DIN35 rail mounted installation Protection level: Sensor IP68, Controller IP65
