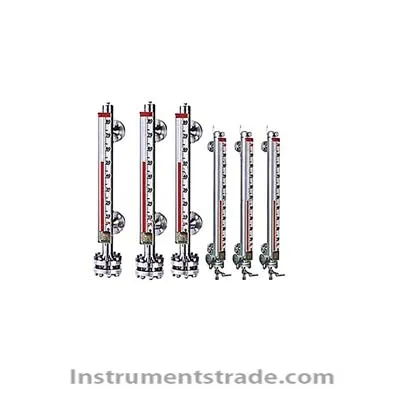

Summary: Uhz-57 /B ordinary side-mounted magnetic liquid level meter is a novel field detection instrument similar to the direct reading liquid level meter. Its main material is stainless steel, which can completely replace the glass tube (plate) liquid level meter. It USES the magnetic coupling principle, makes the liquid medium and the indicator completely isolated, to flammable, explosive and toxic medium liquid level detection more safe and reliable. The level indicator is clear and easy to observe. There are three forms of local indicator: red and white tilting column, tilting ball and buoy tracking. If equipped with wcy-ub produced by our company, wcy-uk remote transmission supporting instrument and scy-500 digital display meter, or wcy-ub produced by our company, connected to DCS or PLC system, remote detection control and alarm can be more convenient. Advantage: 1. Adopting high quality magnets and imported electronic components, the product has the following advantages: reasonable design, simple structure, easy to use, stable performance, long service life, easy to install and maintain, etc. 2. Good vibration resistance, able to work under the condition of large liquid level fluctuation 3. The material in direct contact with the medium of the main component (body) of the liquid level meter is made of high-quality stainless steel or other special materials, indicating that the component does not contact with the medium. Therefore, the liquid level meter is very safe and reliable for containers containing inflammable, explosive, toxic and corrosive media. 4. Double colors (white gas phase, red liquid phase) are adopted for column and plate turning, indicating continuous, intuitive and eye-catching, no blind area, and no false liquid level will appear under any circumstances. 5. The sealing surface is less, and the static seal leakage point is more than 95% less than that of the original plate-type liquid level meter. Therefore, it overcomes the weak links such as running, rising, dripping and leakage of pressure vessel accessories in petroleum, chemical industry and other industries. Main technical indicators: Measurement accuracy: + / - 1cm (inverted column) Plus or minus 2cm (flip) + / - 1cm (buoy) Measurement range: 0-400mm to 0-20000mm Medium density: greater than or equal to 0.45g/cm squared Medium viscosity: less than or equal to 0.02pa. S (at medium operating temperature) Working temperature: - 20 ℃ < t 450 ℃ or less Working pressure: 1.0,1.6,2.5,4.0MPa Connecting flange size: DN20, DN25, DN40, DN50, special specifications can be customized Factory flange standard: hg20592-20635-1997
Summary: Uhz-57 /B ordinary side-mounted magnetic liquid level meter is a novel field detection instrument similar to the direct reading liquid level meter. Its main material is stainless steel, which can completely replace the glass tube (plate) liquid level meter. It USES the magnetic coupling principle, makes the liquid medium and the indicator completely isolated, to flammable, explosive and toxic medium liquid level detection more safe and reliable. The level indicator is clear and easy to observe. There are three forms of local indicator: red and white tilting column, tilting ball and buoy tracking. If equipped with wcy-ub produced by our company, wcy-uk remote transmission supporting instrument and scy-500 digital display meter, or wcy-ub produced by our company, connected to DCS or PLC system, remote detection control and alarm can be more convenient.
