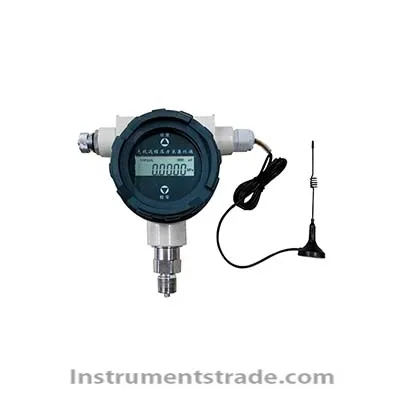

Brief introduction: TSM-01PN wireless pressure acquisition terminal is a battery powered intelligent instrument with high precision and wireless communication function. The main application field is for the field or supporting power supply environment is inconvenient occasions, such as oil, gas, heating and other places to transport energy pipeline pressure monitoring, wireless signal transmission, no need for on-site wiring, save the trouble of common instruments need on-site wiring, and save manpower and construction costs. With the upper computer software, the user can customize the configuration of server, port, upper and lower pressure limit, collection interval and reporting interval. This equipment also has the field pressure real-time display, automatic measurement, automatic reporting, automatic storage and other functions, no field personnel for meter reading, more safe, more reliable. The wireless pressure gauge produced by our company has advanced design, complete varieties and specifications, easy to install and use, and is an ideal upgrade product for traditional pressure transmitter. Combined with demo web platform or third-party software, users can view real-time pressure data and historical records on the computer or mobile phone. Application: The product is widely used in fire fighting, heating pipelines, water plants, oil refineries, oil pipelines, sewage treatment plants, urban gas pipelines and other industrial fields, to achieve the measurement of liquid, gas, steam pressure. Features: Low power consumption processor; Embedded precision clock, automatic calibration, and server Internet time synchronization; Embedded TCP/IP protocol; High precision internal AD, pressure change detection; Dedicated segment display screen, 7 bit segment code dynamic display; Special upper computer software setting parameters; Data storage is supported Embedded watchdog, not dead Remote transmission, using nb-iot wireless network, data collection wireless remote to the designated server; 2. Support deep sleep and button wake-up function; With data storage, data replacement function; With low battery power SMS alarm function; Lithium ion battery power. Shell protection level: IP65. Standard industry 5 core waterproof navigation plug. The configuration line USES USB interface to facilitate the configuration parameters of operators. It has the function of anti-reverse connection, anti-surge, anti-shock, anti-moisture, anti-rain and anti-harmful gas. High precision, anti-interference, maintenance free. Technical parameters: Work mode regular active reporting, reporting cycle can be arbitrarily set report Industrial clock built-in industrial clock, automatic calibration Data interval sampling interval and reporting interval can be set Parameter setting local serial port setting Measurement range 0 ~ 2.5mpa, 0 ~ 25MPa, other ranges can be customized Accuracy grade 0.2, 0.5 The range of overload pressure is 1.5-3 times, depending on the measuring range Process connection M20* 1.5mm, other thread interface size can be customized High energy lithium battery power supply Resolution is 16 bit The maximum current at the moment of working current emission is 400~500mA; Working environment temperature: - 20 ℃ ~ 70 ℃, humidity: < 90% RH Protection grade IP65, waterproof, dustproof
