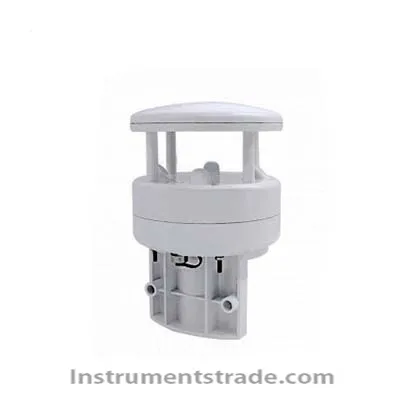

Introduction: The TS PRS-01 piezoelectric rain gauge is a small instrument developed and produced by our company to monitor rainfall. The working principle of the piezoelectric rain gauge is to use the piezoelectric effect of the piezoelectric vibrator to turn the mechanical displacement (vibration) into electricity. The signal is then transformed into the voltage waveform according to the energy of the raindrop impact, and according to the change of the voltage waveform, the size of the rainfall can be obtained, so as to realize the measurement of the weight of a single raindrop, and then calculate the rainfall. This product has the advantages of fast response, accurate measurement and high reliability; it is widely used in many fields such as meteorology, environmental protection, transportation, electric power, agriculture, transportation and water conservancy. Features: 1. Small size and light weight 2. Open system protocol, 3. Maintenance-free system design, high precision 4. Standard RS485 protocol output 5. Protective shell to ensure long-term use in the field Technical parameter: Principle: Using the piezoelectric effect of the piezoelectric vibrator, the mechanical displacement (vibration) is converted into an electrical signal, and then the voltage waveform is transformed according to the energy of the raindrop impact, and according to the change of the voltage waveform, the size of the rainfall can be obtained, so as to realize the control of a single Raindrop weight is measured, and then rainfall is calculated. Resolution: 0.1mm Accuracy: ＜±4% Large instantaneous rainfall: 0.4mm/s Product weight: weighs about 1 kg Product size: diameter 140 mm, height 212 mm Interface: RS485, baud rate (2400, 4800, 9600, 19200, 38400, etc.) Power supply voltage: 9～30VDC Average current: less than 10mA Working humidity range: 0～100%RH Operating temperature range: -40～60°C (standard), extended to -50～80°C Protection: IP66
Introduction: The TS PRS-01 piezoelectric rain gauge is a small instrument developed and produced by our company to monitor rainfall. The working principle of the piezoelectric rain gauge is to use the piezoelectric effect of the piezoelectric vibrator to turn the mechanical displacement (vibration) into electricity. The signal is then transformed into the voltage waveform according to the energy of the raindrop impact, and according to the change of the voltage waveform, the size of the rainfall can be obtained, so as to realize the measurement of the weight of a single raindrop, and then calculate the rainfall. This product has the advantages of fast response, accurate measurement and high reliability; it is widely used in many fields such as meteorology, environmental protection, transportation, electric power, agriculture, transportation and water conservancy.
