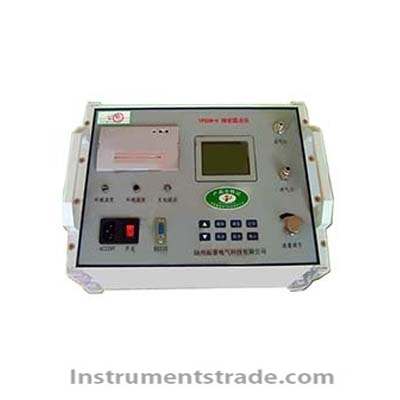

TPGSM-H precision dewpoint meter Introduction:
TPGSM-H Precision Dewpoint Meter is mainly developed for the measurement of non-polluting gases such as H2 and SF6. It has always been "all for the convenience of users" in the development process. In view of the current situation that the power system places more emphasis on the pressure parameters of the equipment, the TPGSM-H precision dew-point meter can improve the accuracy (± 0.05Mpa) and the resolution (0.01Mpa) of pressure measurement and respond faster. The new dewpoint device reduces the volume on the one hand, on the other hand adds the miniature printer in the instrument. Features:
1, will use a large energy density, small size, light weight lithium battery. The charging module uses automatic charging, automatic shutdown automatic power management, even if the user does not turn on the power switch, just plug in AC220V power can be automatically charged. When the battery charge to a certain extent, the system will automatically determine and cut off. This effectively prevents the battery from overcharging. During use, the instrument detects a decrease in battery power (shown on the second screen), but the instrument prompts the user to charge when the battery charge is 10%. The instrument automatically shuts down when the battery power is less than 5%. A school to prevent the battery over-discharge, in order to avoid damage to the battery.
2, according to the market research situation, especially the switchgear plant equipped with a built-in micro-printer dew-point demand, so the TPGSM-H precision dew-point device on the one hand to reduce the volume, on the other hand in order to allow users to carry and We use the TPGSM-H precision dewpoint meter built-in micro-printer; and when the printer is printed different from other manufacturers also need AC220V power supply, as long as the instrument can work (that is, the use of the instrument's built-in DC power supply) can print data.
3, TPGSM-F type SF6 precision dew point meter save the record, the user no way to remember which record is measured which equipment, in view of this situation, we developed the TPGSM-H precision dew point instrument, each record plus The device name column, that is, the user can save the record when you enter the device name, adjust the display later in the device name can check the corresponding record.
4, in view of the current situation that the power system places more emphasis on the pressure of the equipment, TPGSM-H precision dewpoint meter improves the accuracy of pressure measurement (± 0.05Mpa) and the resolution (0.01Mpa), and the response speed is also faster. Technical Parameters:
Dew point range: -60 ~ +20 degrees, accuracy ± 1 ℃
Micro-water range: 10 ~ 23000 μL / L (ppm)
Response time: (+20 ℃) -60 → 20 ℃ 5s (63%) 45s (90%)
20 → -60 ° C 10s (63%) 240s (90%)
Communication: RS232, coupled with bit machine data management software
Pressure measurement range: 0 ~ 1.5 Mpa
Flow measurement range: 0 ~ 1 L / min
Ambient temperature measurement range: -30 ~ 100 ℃
Environmental humidity measurement range: 5 ~ 95% RH
Ambient temperature: 0 ~ +60 ℃
Operating environment humidity: 0 ~ 90% RH
Working pressure: 0 ~ 1MPa
Flow range: 0 ~ 1L / min
Power: AC, DC dual-use
Volume: 300 × 200 × 100mm
Weight: 2.5Kg
Introduction
TPGSM-H intelligent dew point meter is mainly developed for the measurement of micro-water (dew point) of non-polluting gases such as H2 and SF6. In view of the current situation that the power system pays more attention to the pressure parameters of the equipment, the TPGSM-H intelligent dew point instrument improves the accuracy of pressure measurement (± 0.05Mpa) and resolution (0.01Mpa), and the response speed is faster.
