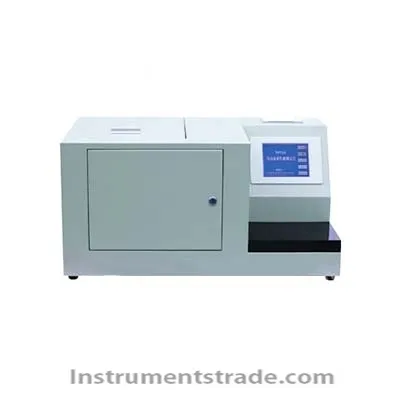

TP756 automatic water-soluble acid analyzer Introduction
TP756 is designed and produced in accordance with GB / T7598 "Determination of Water-Soluble Acids of Transformer Oil and Turbine Oils in Operation (Colorimetric Method)", and is specially used for the determination of water-soluble acids (pH) of transformer oil, steam turbine oil, and oil-resistant petroleum products. Features
Integrated design, single-chip control.
The instrument has a high degree of automation.
LCD display, Chinese menu, easy to operate.
Automatically complete heating, shaking, standing, oil-water separation, color development, color comparison, display and print the measurement results. Technical Parameters
Measuring range: pH3.8 ～ 7.0
Measurement error: ≤ ± 0.05 pH
Resolution: 0.01pH
Repeatability: ≤1%
Applicable temperature: 5 ℃ ～ 40 ℃
Applicable humidity: ≤85%
Power supply voltage AC: AC 220V ± 10% 50Hz ± 10%
Power: ≤ 500W
Dimensions: 680mm × 420mm × 345mm
Introduction
TP756 is designed and produced in accordance with GB / T7598 "Determination of Water-Soluble Acids of Transformer Oil and Turbine Oils in Operation (Colorimetric Method)", and is specially used for the determination of water-soluble acids (pH) of transformer oil, steam turbine oil, and oil-resistant petroleum products.
