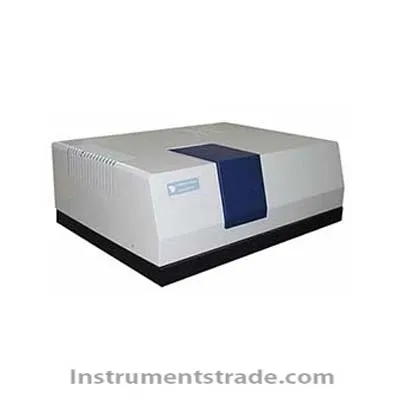

TP720 UV - visible - near infrared spectrophotometer

Product ID:FGjhw003

Price: US$11,000.00 ~ US$16,000.00 PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberTP720
    Brand NameYIMA
    Payment TermsT/T, paypal
    Main purpose and scope
    TP720 UV- NIR Spectrophotometer UV-visible simultaneously covering the near-infrared waveband . The instrument uses a computer control and measurement , simple, functional, and can be widely used in various fields of chemical , pharmaceutical , environmental protection, education , materials science , public security, national defense , scientific research , production, teaching an indispensable analytical instruments .
    Main technical characteristics:
    The product uses a double grating , dual receiver design , the choice of a photomultiplier tube receiver and lead sulfide imported components , to ensure that the instrument cover band UV-visible , near infrared wavelength range : 190-2800nm.
    Main Specifications
    Wavelength range 190~2600 nm
    Measurement mode Transmittance , absorbance , reflectance , energy
    Wavelength Accuracy ±0.5nm(UV/VIS);±4nm(NIR) Wavelength repeatability ±0.3nm(UV/VIS);±2nm(NIR)
    Luminosity range 0.300~2.5A,
    Photometric accuracy ±0.3%T(0-100.0%T)  Photometric repeatability 0.2%T
    Baseline flatness ±0.008A (200-2500nm,After a half-hour warm-up)
    Spectral Bandwidth UV-visible:0.2nm,0.5nm ,1.0nm ,1.5nm,2.0nm,4.0nm
    Near Infrared0.4-16.0nm(Automatic, Manual)
    Stray light ≤0.1%T(220nm)
    Dimensions 830×600×260mm

  • Introduction:
    UV-Vis-NIR spectrophotometer TP720 can cover the entire UV-Vis-NIR spectral range and realize continuous scanning in the 190-2800nm band. The UV-Vis-NIR spectrophotometer TP720 has a wide range of applications. It can measure the characteristic absorption of solid / liquid samples in the UV-Vis-NIR range; it can study the absorption / transmission or reflection spectrum of glass coating samples; it can study the powder samples The absorption spectrum in the entire ultraviolet, visible, and near-infrared region; it can also measure the diffuse reflection spectrum of special coatings, which is suitable for semiconductors, optical components, building materials, coatings, new materials and other industries. It is a powerful spectral analysis instrument.
