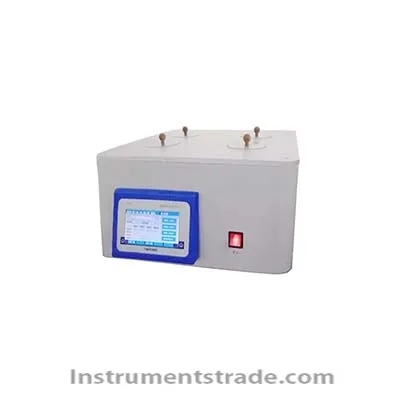

TP633 liquid corrosion tester Introduction
TP633 liquid phase corrosion tester is mainly used to evaluate the rust prevention ability of iron components with inhibitor mineral oil and turbine oil when mixed with water; it is also suitable for the rust prevention ability of hydraulic oil and circulating oil. Can be widely used in power, petroleum, chemical, commodity inspection and scientific research departments. Features
Color LCD 480 × 272 large screen display, full Chinese man-machine dialogue interface, with Chinese prompt menu-oriented input.
It is controlled by microcomputer and consists of a constant temperature bath and an electronically controlled constant temperature system. Four samples can be tested separately.
Precision platinum resistance measuring element can realize high precision constant temperature control.
Stirring adopts imported permanent magnet motor with stable speed
The overall structure is reasonable, safe and convenient, and easy to operate. Technical Parameters
Display: Color 5.0-inch 480 × 272 dot LCD, Chinese display
Temperature control accuracy: ± 1 ℃
Temperature control range: greenhouse ～ 100 ℃
Resolution: 0.1 ℃
Sample stirring: 1000 ± 50 rpm
Experimental hole: 4 holes
Temperature control time: 0 ～ 99 hours
Heating method: electric heating tube heating
Temperature measuring electrode: platinum resistance (pt100)
Ambient temperature: 5 ℃ ～ 40 ℃
Relative humidity: ≤85% (non-condensing)
Power supply voltage: AC 220V ± 10% 50Hz ± 10%
Power consumption: ≤1500W
Power of stirring motor: ≤ 100W Heater power: <1200W
Dimensions: 490mm × 310mm × 220mm
Instrument weight: 9.5kg
Introduction
TP633 liquid phase corrosion tester is mainly used to evaluate the rust prevention ability of iron components with inhibitor mineral oil and turbine oil when mixed with water; it is also suitable for the rust prevention ability of hydraulic oil and circulating oil. Can be widely used in power, petroleum, chemical, commodity inspection and scientific research departments.
