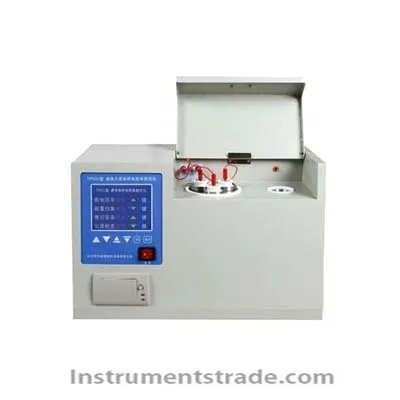

TP631 volume resistivity tester Introduction
TP631 volume resistivity tester is used in power, petroleum, chemical, commodity inspection and scientific research departments to test insulation oil and fuel resistance. Features
Using MCU measurement and control unit, high measurement accuracy and good repeatability.
7.0-inch color touch screen, Chinese display, easy to operate.
High-precision temperature control, can perform experiments at 20 ℃ and 90 ℃.
Standard mode measurement and user-defined mode measurement are convenient for users.
Test results are automatically stored and can be viewed or printed at any time.
The instrument can test three samples simultaneously to improve work efficiency.
The instrument comes with a self-check function, which can judge the reliability of the measurement results of the instrument. Technical Parameters
Measuring range: (2.5 × 105 ～ 2.5 × 1013) Ωm
Temperature control range: (15 ～ 100) ℃
Minimum cooling temperature: no more than (ambient temperature -10 ℃)
Temperature control accuracy: ± 0.3 ℃
Measurement mode: standard mode measurement, custom mode measurement
Instrument working environment: temperature 0 ～ 30 ℃, humidity: ≤75%
Instrument standard environment: temperature 20 ± 5 ℃
Humidity: 45% ～ 75%
Working voltage: AC 220V ± 10% 50Hz ± 10%
Power: ≤ 500W
Dimensions: 445mm × 290mm × 240mm
Instrument weight: 16Kg
