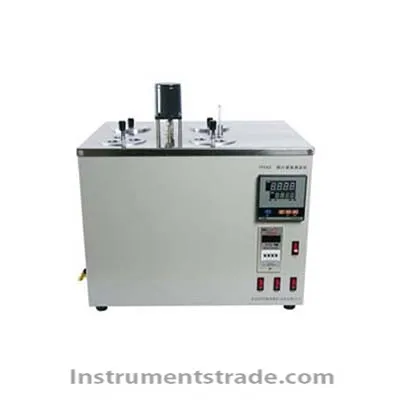

TP582 copper corrosion tester Introduction
TP582 copper sheet corrosion tester conforms to GB / T 5096, GB / T 7326, ASTM D4048, SH / T 0232, ISO 6251, SH / T 0023, ASTM D130, suitable for the determination of aviation gasoline, jet fuel, automotive gasoline, natural The degree of corrosion of copper by gasoline or other hydrocarbons, solvent oil, diesel oil, distillate fuel oil, lubricating oil, grease, and other petroleum products with a Redder vapor pressure of not more than 124 kilopascals (930 mm Hg) Features
Intelligent measurement and control system has self-diagnostic function
Test bath with precision temperature controlled metal bath
Corrosion test time can be set and alarmed
Using PID temperature control technology Technical Parameters
Power supply voltage: AC 220V ± 10% 50Hz ± 10%
Temperature sensor: Industrial platinum resistance (Pt100)
Temperature control range: arbitrarily set from room temperature to 150 ℃
Temperature control accuracy: ± 1 ℃
Temperature display mode: digital tube display
Temperature controlled heating: 600W
Auxiliary heating power: 1000W
Time control range: 1 minute to 24 hours
Time display mode: LED digital display
Sheng sample holes: 4
Number of measurement samples: up to 12
Ambient temperature: 5 ℃ ～ 40 ℃
Relative humidity: ≤85%
Overall power consumption: ≤1800W
Dimensions: 480mm × 360mm × 520mm
Instrument weight: 18kg
