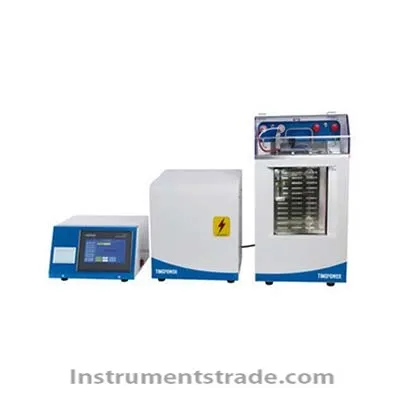

TP575 gas evolution tester Introduction
TP575 gas evolution tester is widely used in petrochemical, electric power, railway, scientific research and other departments. Features
7-inch large-screen touch LCD screen with clear images and easy operation.
Different standards are integrated into one, and customers are highly selective.
Built-in flow chart, user experiments are easy to operate.
Imported temperature sensor with high measurement accuracy.
Imported temperature control module, high precision temperature control.
With oil drain valve, easy oil change operation.
The thermal printer prints the results, which is stable and reliable.
With safety protection switch, the instrument is safe and reliable to use.
Store 1000 pieces of historical data for easy inquiry. Technical Parameters
Hydrogen inlet pressure: 0.05 ～ 0.1Mpa
Constant temperature: 80 ℃ ± 0.05 ℃ (adjustable range: room temperature to 100 ℃)
Resolution: 0.01 ℃
Test voltage: 10kV ± 0.2 kV
Resolution: 0.01kV
Time measurement: 5 min, 10 min, 50min, 120min (automatic conversion according to standards)
Timing error: <± 0.1s
Operating temperature: (10 ～ 40) ℃
Relative humidity: <85%
Heating power: ≤1500W
Mixing speed: 1200 rpm
Power supply voltage: AC 220V ± 10% 50Hz ± 10%
Machine power: ≤1700W
Dimensions: Controller: 320mm × 305mm × 195mm
High pressure generator: 320mm × 305mm × 380mm Tritium gassing property tester: 320mm × 305mm × 590mm
TP575 gas evolution tester is widely used in petrochemical, electric power, railway, scientific research and other departments. TP575 gas evolution tester is an indispensable device for oil analysis and quality inspection.
