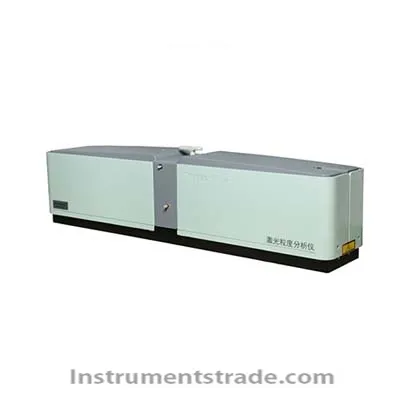

Topsizer Plus Laser Particle Size Analyzer Introduction
Topsizer Plus maintains the advantages of TopSizer, such as wide range, good repeatability, high resolution, strong real test performance and high intelligence, by further improving optical design, hardware and inversion algorithm, Topsizer Plus expands its test scope and actual test performance, it can be widely used in various fields of modern industry such as chemical industry, machinery, building materials, energy, pharmaceuticals and so on.
In many industries, such as lithium-ion battery, pharmaceuticals, hydrology and fine chemicals, many users choose Omec laser particle size analyzers, especially TopSizer, in addition to the trust for Omec brand and technology, but also because it comes from the product technology and quality management system of Malvern Panalytical, the instrument test results have excellent accuracy, authenticity and sensitivity.
Topsizer series products ensure that the test results and analysis capabilities are consistent with the gold standards of domestic & foreign and upstream & downstream industries, whether it is raw materials, preparations or positive and negative materials for lithium ion batteries. This not only saves the time and cost of method development and method transfer for users, but also avoids the economic losses and risks caused by inaccurate particle size detection. Whether in R&D, process control or quality control, it can bring real value to users. Technical parameter
1. Measure rang:0.01-3600μm(wet, depends on sample), 0.1～3600μm (dry, depends on sample)
2. Theory: Mie theory
3. Repeatability error: ≤0.5%(standard particle D50)
4. Accuracy error: ≤±0.6% (standard particle D50)
5. Test speed: within 10 seconds for common sample
6. Sampling way:
Automated wet-dispersion test*, the sample feeder adopts a high-power precision centrifugal pump with an imported motor, the stirring speed can reach 4000 rpm, built-in ultrasound is continuously adjustable (with SCF-105B).
Automated dry-dispersion test*, dispersed working pressure of sample feeder is 0.05-0.6 MPa, stepless continuous adjustment. Vibration sampling of piezoelectric ceramics crystal can be continuously adjusted at a speed of 0-100% (with DPF-110).
7. Light path system:
The dual light source design uses imported He-Ne laser with a wavelength of 0.6328μm and a semiconductor blue light source with a wavelength of 0.466μm, which greatly improves the resolution of nanoparticles and a small number of large particles. Laser power is stable all the time, power fluctuation is less than 0.5%;
The instrument design conforms to the international laser safety standards and has the function of laser beam automatic protection.
It adopts an integrated high precision all-aluminum alloy optical platform, which is stable and reliable for a long time.
Single lens design, using lens Back-Fourier transform structure; the optical system is completely closed to effectively solve the problem of dust pollution;
Detector can realize automatic alignment.
8. Detector:
There are 103 detecting channels. The three-dimensional detection system consists of forward, lateral, large angle and backward photodetectors. The maximum detection angle is 140°, the minimum detection angle is 0.016 °, no blind area.
9. Software function:
Rich customized report function, convenient for users to obtain data and define report style flexibly;
Software design modularization, invisible instrument status, humanized operation interface.
SOP standardization operating procedure
Various data analysis models are used to meet the testing needs of samples with different characteristics.
Clear navigation function and flow interface
With artificial intelligence, the instrument has the function of self-inspection, automatic identification of the feeding system;
The electric background can be automatically measured before each measurement, which can effectively eliminate the influence of electrical noise on the test results.
Various ways of measuring data export to facilitate data exchange;
Perfect and open database of sample characteristic parameters with common refractive indexes and absorptivity parameters
Volume distribution, surface area distribution, length distribution and quantity distribution can be converted to each other.
Provide software solutions that meet the requirements of GMP Annex "Computerized System", with user classification, authority management, data integrity and traceability functions.
10. Dimension；
Mainframe：1330×266×380 mm
Circulated sample feeding system: 265×325×405mm（SCF-108），210×260×345mm（SCF-105B）
Dry-dispersion sample feeding system: 305×245×295mm（DPF-110）
