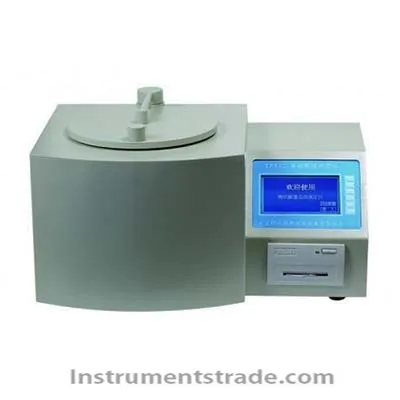

Introduction: The TH532 automatic acid value analyzer is developed based on GB / T 264 and GB / T 7599, and is mainly used to determine the acid value of transformer oil, steam turbine oil and other petroleum products. It can be widely used in power, petroleum, chemical, commodity inspection and scientific research departments. Features: 1. Using dual CPU microcomputer control 2. The detection system uses imported laser devices, with low power and long life 3. Automatic titration to judge the end point 4. Automatic extraction, neutralization, rotating cup, detection, printing, etc. 5. LCD display, no logo button Technical Parameters: Measuring range: 0.0001 ～ 0.9999mgKOH / g Accuracy: Acid value between 0.001 ～ 0.1mgKOH / g ± 0.01mgKOH / g The acid value is 5% of the indicated value between 0.1 ～ 0.4mgKOH / g Repeatability: 0.02mgKOH / g Resolution: 0.0001mgKOH / g Measurement method: Neutralization method Cups served: 6 cups Display mode: LCD display (480 × 272) Power supply voltage: AC 220V ± 10% 50Hz ± 10% Ambient temperature: 5 ℃～ 40 ℃ Relative humidity: ≤85% Dimensions: 480mm × 340mm × 200mm Printing: Thermal printing Power rate: 60W Weight: 12.5kg
Introduction: The TH532 automatic acid value analyzer is developed based on GB / T 264 and GB / T 7599, and is mainly used to determine the acid value of transformer oil, steam turbine oil and other petroleum products. It can be widely used in power, petroleum, chemical, commodity inspection and scientific research departments.
